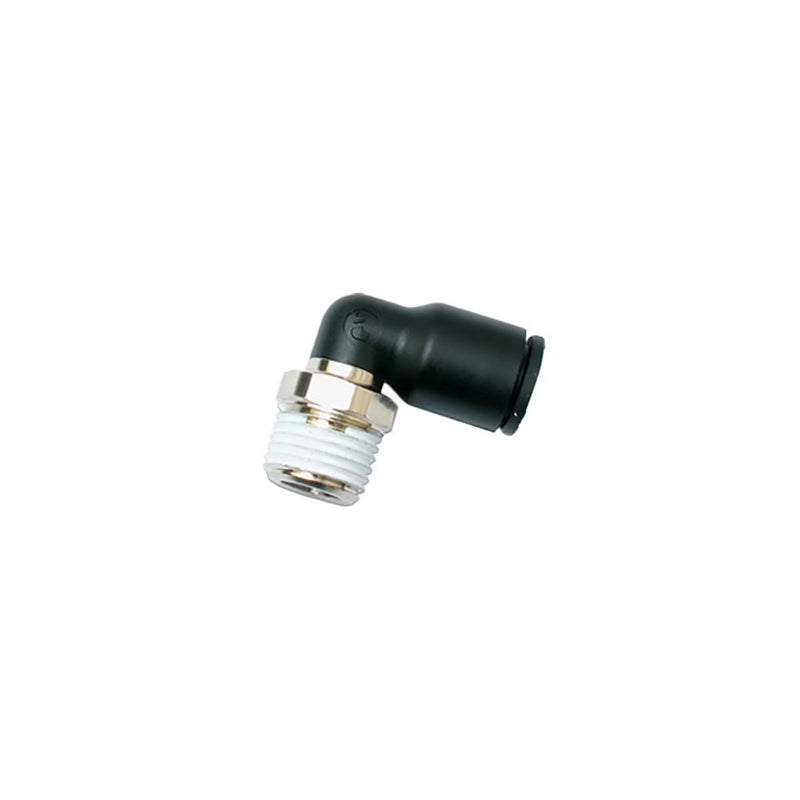

3109 53 14 by Parker | Legris Stud Fitting | 1/8" Push-to-Connect x 1/4" Male Swivel NPT Thread | 14 mm Hex | 90° Elbow | Polymer | Pack of 10

Save $5.36

$58.97

$58.97 - $58.97

$58.97

$53.61

$53.61 - $53.61

$53.61

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3109 Stud Elbow, Male NPT Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3109 53 14 Parker \| 10 \|
Brand:	LF 3000®
Series:	3109 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Coated, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	F	G	H	L	Kg
3109 53 20	1/8"	10-32	8 mm	.34"	.52"	.57"	.0089 Kg
3109 53 08	1/8"	1/16"	10 mm	.34"	.53"	.57"	.0147 Kg
3109 53 11	1/8"	1/8"	11 mm	8.6 mm	13.5 mm	14.5 mm	.007 Kg
3109 53 14	1/8"	1/4"	14 mm	8.6 mm	14 mm	14.5 mm	.015 Kg
3109 55 11*	3/16"	1/8"	11 mm	.43"	.67"	.85"	.0132 Kg
3109 56 20	1/8"	10-32	11 mm	.43"	.63"	.71"	.0089 Kg
3109 56 11	1/4"	1/8"	11 mm	11 mm	17 mm	18 mm	.008 Kg
3109 56 14	1/4"	1/4"	14 mm	11 mm	16 mm	18 mm	.014 Kg
3109 56 18	1/4"	3/8"	18 mm	11 mm	16.5 mm	18 mm	.021 Kg
3109 60 11	3/8"	1/8"	15 mm	16 mm	23.1 mm	27.4 mm	.014 Kg
3109 60 14	3/8"	1/4"	15 mm	16 mm	23.1 mm	27.4 mm	.017 Kg
3109 60 18	3/8"	3/8"	18 mm	16 mm	22.1 mm	27.4 mm	.024 Kg
3109 60 22	3/8"	1/2"	22 mm	.63"	.91"	1.08"	.0526 Kg
3109 62 14	1/2"	1/4"	20 mm	.87"	1.22"	1.38"	.0419 Kg
3109 62 18	1/2"	3/8"	20 mm	.87"	1.22"	1.38"	.0434 Kg
3109 62 22	1/2"	1/2"	24 mm	22.1 mm	28.4 mm	35.1 mm	.045 Kg

Pre-coated thread

The body swivels for positioning purposes.

5/32”(4 mm) and 5/16”(8 mm) are also available.
