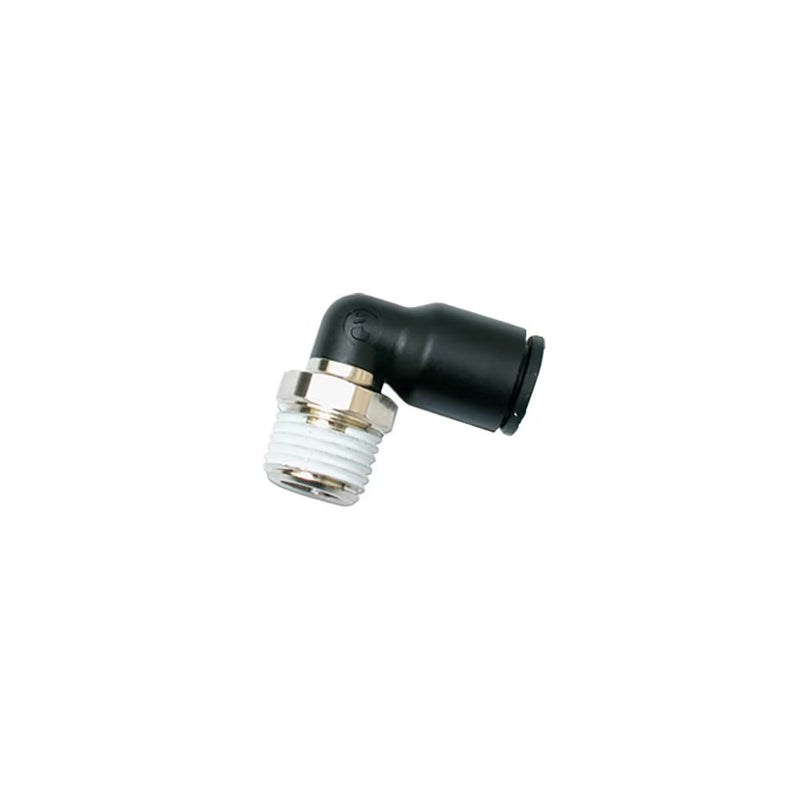

3109 62 21 by Parker | Legris Stud Fitting | 1/2" Push-to-Connect x 1/2" Male Swivel BSPT Thread | 24 mm Hex | 90° Elbow | Polymer | Pack of 10

$174.48 - $174.48

$174.48

$190.27

$190.27 - $190.27

$190.27

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3109 Stud Elbow, Male BSPT Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3109 62 21 Parker \| 10 \|
Brand:	LF 3000®
Series:	3109 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Coated, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	F	G	H	L	Kg
3109 53 10	1/8"	1/8"	10 mm	8.6 mm	13.5 mm	14.5 mm	.011 Kg
3109 56 10	1/4"	1/8"	10 mm	11 mm	17 mm	18 mm	.006 Kg
3109 56 13	1/4"	1/4"	14 mm	11 mm	17 mm	18 mm	.013 Kg
3109 60 13	3/8"	1/4"	15 mm	16 mm	22.1 mm	26.4 mm	.016 Kg
3109 60 17	3/8"	3/8"	17 mm	16 mm	22.1 mm	26.4 mm	.054 Kg
3109 62 13	1/2"	1/4"	20 mm	22.1 mm	31 mm	35.1 mm	.064 Kg
3109 62 17	1/2"	3/8"	20 mm	22.1 mm	31 mm	35.1 mm	.067 Kg
3109 62 21	1/2"	1/2"	24 mm	22.1 mm	28.4 mm	35.1 mm	.046 Kg

Pre-coated thread

The body swivels for positioning purposes.

5/32”(4 mm) and 5/16”(8 mm) are also available.
