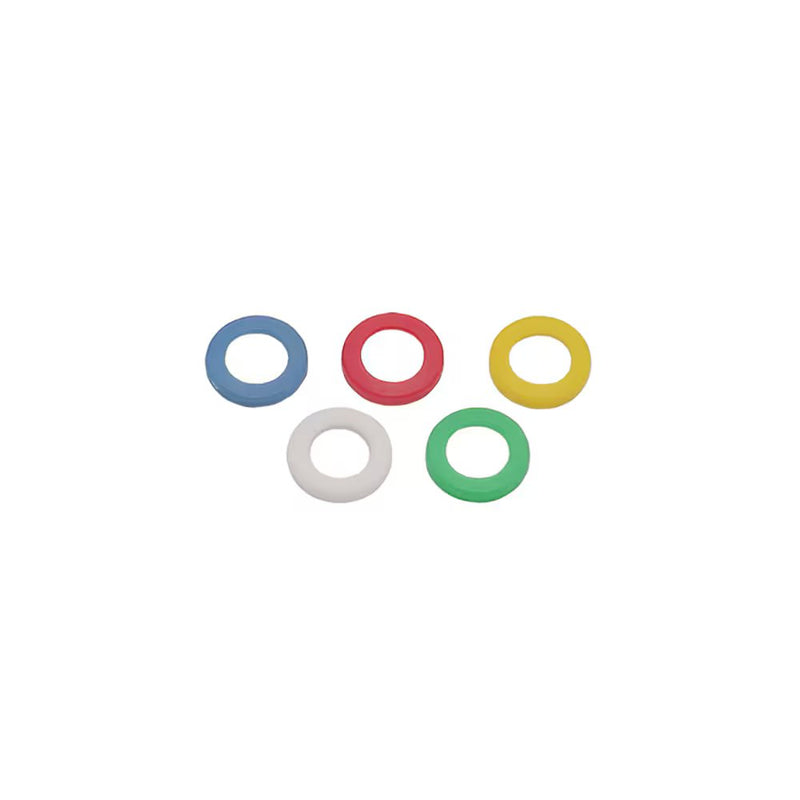

3110 08 00 by Parker | Legris Caps Manual Release Button | 8mm Tube | White | Cap | Pack of 100

Save $11.71

$63.71

$63.71 - $63.71

$63.71

$52.00

$52.00 - $52.00

$52.00

by Parker Hannifin
Push-to-Connect Fittings:3110 - 3330 Caps Manual Release Button - Metric

Package Quantity: 100 Units

Specifications for Variant SKU: 3110 08 00 Parker \| 100 \|
Series:	3110 Series
Shape (Orientation):	No Orientation
Material(s):	Polymer
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Installation:	Mark out the fixing hole Make hole in panel Simply push the fitting into place To complete the installation To identify circuits simply remove the black release button and replace with colored one

Tube (mm)	Tube (in)	White Part Number	Black Part Number	Green Part Number	Red Part Number	Blue Part Number	Yellow Part Number
4 mm	1/8"	3110 04 00	3330 04 01	3110 04 02	3110 04 03	3110 04 04	3110 04 05
6 mm	-	3110 06 00	-	3110 06 02	3110 06 03	3110 06 04	3110 06 05
8 mm	5/16"	3110 08 00	-	3110 08 02	3110 08 03	3110 08 04	3110 08 05
10 mm	-	3110 10 00	-	3110 10 02	3110 10 03	3110 10 04	3110 10 05
12 mm	-	-	-	3110 12 02	3110 12 03	3110 12 04	3110 12 05
14 mm	-	3110 14 00	-	3110 14 02	3110 14 03	3110 14 04	-

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
