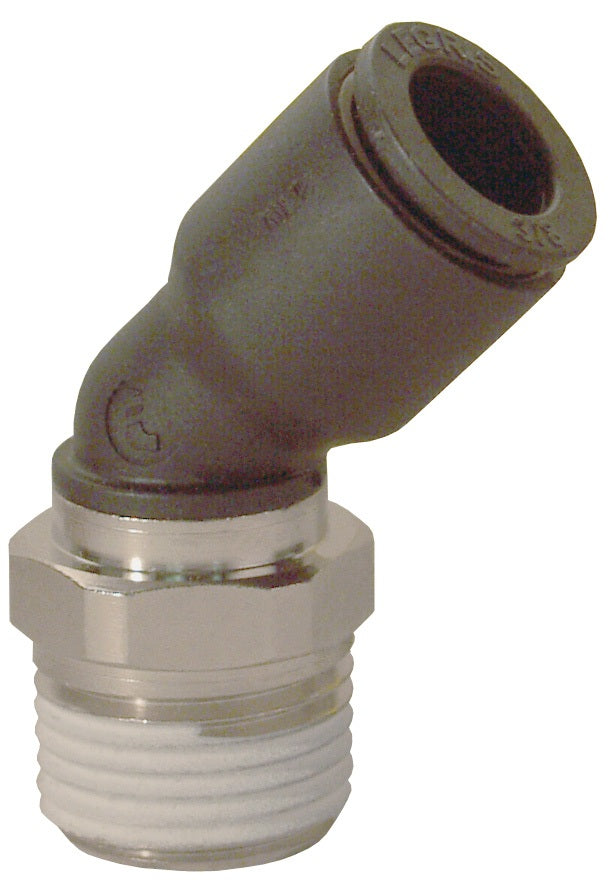

31135611 by Dixon Valve | Legris Push-In Fitting | Male Connector | 45° Elbow | 1/4" Tube OD x 1/8" Male NPT | Nylon / Nickel-Plated Brass

Save $3.79

$9.47

$9.47 - $9.47

$9.47

$5.68

$5.68 - $5.68

$5.68

Dixon Valve & Coupling
Legris Push-In Fitting | Male Connector | 45° Elbow | Male NPT x Tube End

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.

NOTE: Body is orientable for positioning purposes.

Specifications for Variant SKU: 31135611 Dixon
Brand:	Legris
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Push-To-Connect, 1/8in Male NPT
Material(s):	Nylon, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Use:
Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube. Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
Positive seal: sealing and holding is accomplished instantaneously. Reusable: connect and disconnect numerous times. Full flow: fitting seals on outside diameter of tubing. Pre-applied thread sealant on all tapered male pipe threads.
Construction:
Nickel-plated brass threads. Black body is glass-filled nylon. Nitrile Rubber D seal. Polypropylene release button. Silicone free.
Specifications:
Working pressure: 290 PSI at ambient temperature Temperature range: -4°F to 175°F (-20°C to 79°C) Vacuum capability: vacuum of 28" Hg (99% vacuum)
Installation:
Quick connect and disconnect, no tools required. To connect, simply push tubing in. To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
Maximum circuit pressure depends equally on the type and diameter of the tube used. Pressure rating given at ambient temperature 70°F/21°C.


Part Number	Tube O.D.	Male NPT
31135611	1/4"	1/8"
31135614	1/4"	1/4"
31136014	3/8"	1/4"
31136018	3/8"	3/8"
