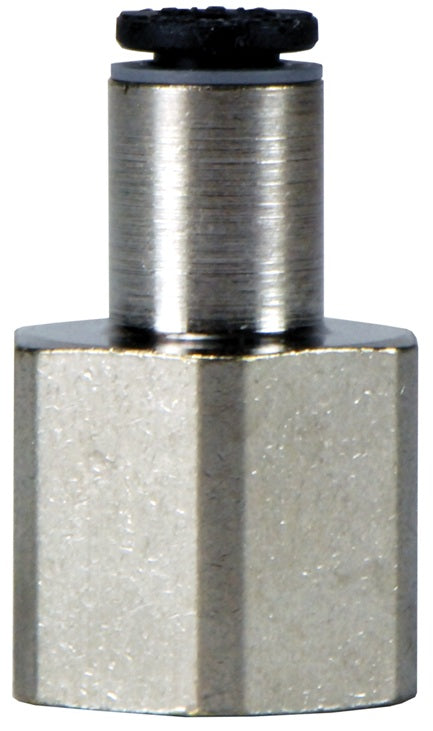

31140813 by Dixon Valve | Legris Metric Push-In Fitting | Female Connector | 8mm Tube OD x 1/4" Female BSPP | Nickel-Plated Brass

31140813 by Dixon Valve | Legris Metric Push-In Fitting | Female Connector | 8mm Tube OD x 1/4" Female BSPP | Nickel-Plated Brass

Save $0.89 Save $0.89
$9.68
$9.68 - $9.68
$9.68
$8.79
$8.79 - $8.79
$8.79

Dixon Valve & Coupling
Legris Metric Push-In Fitting | Female Connector | Female BSPP x Tube End

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.
Specifications for Variant SKU: 31140813 Dixon
Shape (Orientation): Straight
Ends Configuration: 8mm Push-to-Connect, 1/4in Female BSPP
Material(s): Nickel-Plated Brass, Polypropylene
Seal Material(s): Buna-N/Nitrile Rubber
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane, and polyethylene tube.
  • Vacuum rating: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Pre-applied thread sealant.
Construction:
  • Polypropylene release button.
  • Nickel-plated brass threads.
  • Silicone free.
Specifications:
  • Pressure rating: 290 PSI at ambient temperature
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Part Number Tube O.D. Female BSPP
31140410 4mm 1/8"
31140413 4mm 1/4"
31140610 6mm 1/8"
31140613 6mm 1/4"
31140810 8mm 1/8"
31140813 8mm 1/4"
