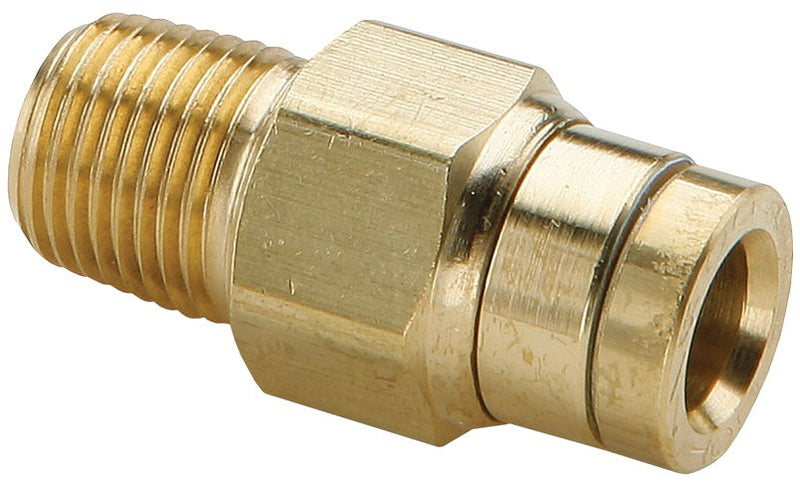

31155618DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Male Connector | 3/8" Male NPT x 1/4" Tube OD | Composite/Brass

31155618DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Male Connector | 3/8" Male NPT x 1/4" Tube OD | Composite/Brass

Save $6.40 Save $6.40
$16.00
$16.00 - $16.00
$16.00
$9.60
$9.60 - $9.60
$9.60

Dixon Valve & Coupling
Legris D.O.T. Push-In Fitting | Male Connector | Male NPT x Tube End

Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle.
Specifications for Variant SKU: 31155618DOT Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 3/8in Male NPT
Material(s): Brass, Plastic
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Suitable fluids: compressed air only.
  • Full 360° rotation, but lock into place preventing accidental movement of fitting.
  • 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
  • Composite body
  • Brass collet
  • Stainless steel tube support
  • Brass threads
  • Nitrile Rubber seal
Specifications:
  • Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
  • Complies with the performance requirements of D.O.T FMVSS 571.106 (SAE J1131) and SAE J2494-3
  • Meets D.O.T. FMVSS 571.106, SAE J2494 and SAE J2494-3; 5/32" and 3/16" have a black button
Part Number Tube O.D. Male NPT
31150411DOT 5/32" 1/8"
31150414DOT 5/32" 1/4"
31155511DOT 3/16" 1/8"
31155514DOT 3/16" 1/4"
31155611DOT 1/4" 1/8"
31155614DOT 1/4" 1/4"
31155618DOT 1/4" 3/8"
31156011DOT 3/8" 1/8"
31156014DOT 3/8" 1/4"
31156018DOT 3/8" 3/8"
31156022DOT 3/8" 1/2"
31156214DOT 1/2" 1/4"
31156218DOT 1/2" 3/8"
31156222DOT 1/2" 1/2"
