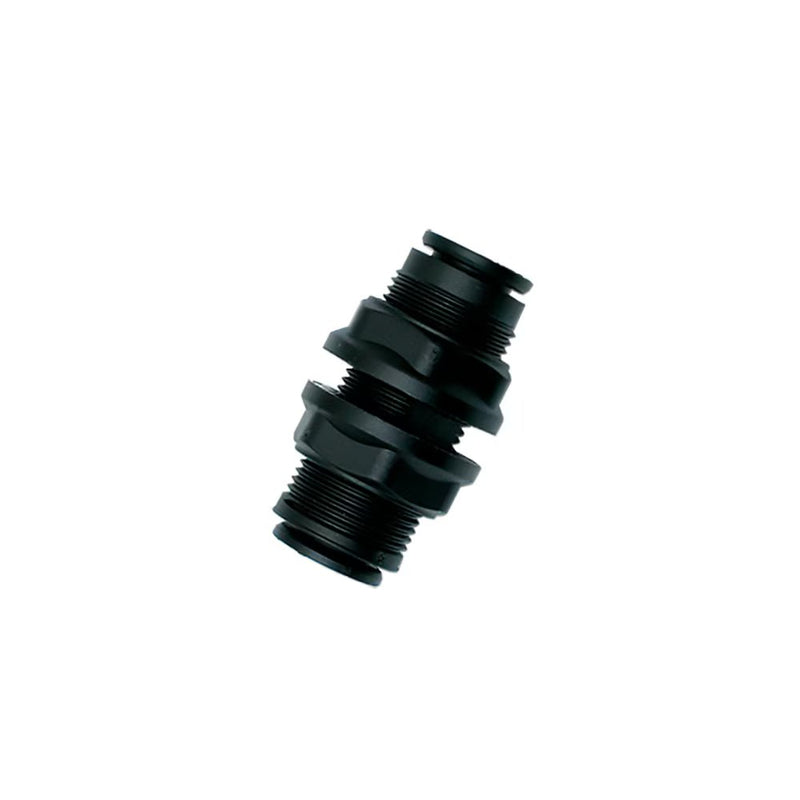

3116 12 00 by Parker | Legris Bulkhead Connector Fitting | 12 mm Push-to-Connect | 26 mm Hex | 51 mm Length | Straight | Polymer | Pack of 10

Save $19.41

$149.41

$149.41 - $149.41

$149.41

$130.00

$130.00 - $130.00

$130.00

by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings:3116 Equal Bulkhead Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 3116 12 00 Parker \| 10 \|
Brand:	LF 3000®
Series:	3116 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	F	K (Max)	L1	L2	ØT (Min)	Kg
3116 04 00	4 mm	13 mm	5.5 mm	15 mm	10 mm	10.5 mm	.003
3116 06 00	6 mm	15 mm	8 mm	19 mm	11.5 mm	12.5 mm	.004
3116 08 00	8 mm	18 mm	14.5 mm	25 mm	13.5 mm	15.5 mm	.007
3116 10 00	10 mm	22 mm	14.5 mm	27.5 mm	15.5 mm	18.5 mm	.011
3116 12 00	12 mm	26 mm	18.5 mm	33 mm	18 mm	22.5 mm	.019
3116 14 00	14 mm	29 mm	20.5 mm	37.5 mm	20.5 mm	25.5 mm	.028

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
