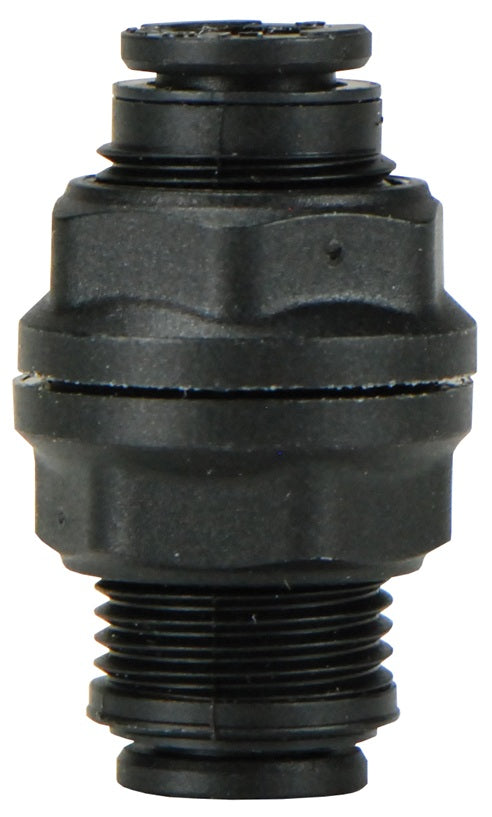

31160800 by Dixon Valve | Legris Push-In Fitting | Bulkhead Union | 5/16" Tube OD x 5/16" Tube OD | Nylon

31160800 by Dixon Valve | Legris Push-In Fitting | Bulkhead Union | 5/16" Tube OD x 5/16" Tube OD | Nylon

Save $1.25 Save $1.25
$13.44
$13.44 - $13.44
$13.44
$12.19
$12.19 - $12.19
$12.19

Dixon Valve & Coupling
Legris Push-In Fitting | Bulkhead Union | Tube End x Tube End
Specifications for Variant SKU: 31160800 Dixon
Brand: Legris
Shape (Orientation): Straight
Ends Configuration: 5/16in Push-To-Connect, 5/16in Push-To-Connect, Some Ends Match
Material(s): Nylon, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
  • Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
Construction:
  • Black body is glass-filled nylon.
  • Nitrile Rubber D seal.
  • Polypropylene release button.
  • Silicone free.
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Pressure rating given at ambient temperature 70°F/21°C.
Part Number Tube O.D. Ends
31165300 1/8"
31160400 5/32"
31165600 1/4"
31160800 5/16"
31166000 3/8"
31166200 1/2"
