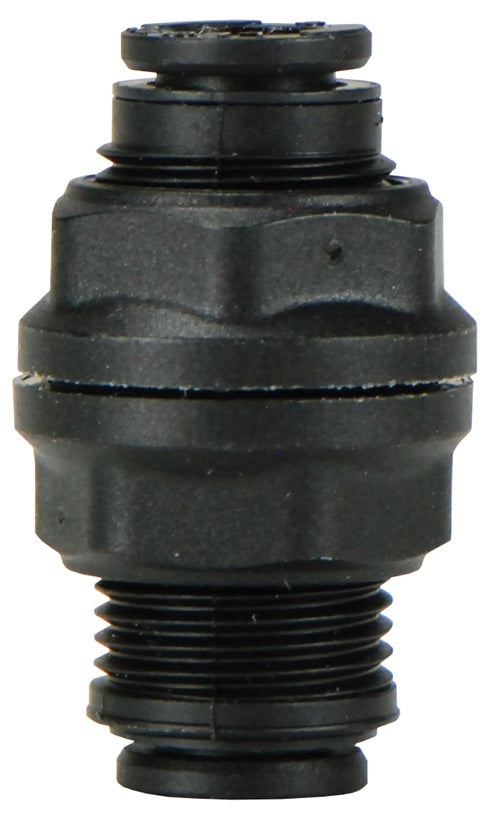

31165300 by Dixon Valve | Legris Push-In Fitting | Bulkhead Union | 1/8" Tube OD x 1/8" Tube OD | Nylon

Name: 31165300 by Dixon Valve | Legris Push-In Fitting | Bulkhead Union | 1/8" Tube OD x 1/8" Tube OD | Nylon
Brand: Dixon
SKU: 31165300 Dixon
Price: 7.25 USD
Availability: InStock

Save $0.76

$8.01

$8.01 - $8.01

$8.01

$7.25

$7.25 - $7.25

$7.25

Dixon Valve & Coupling
Legris Push-In Fitting | Bulkhead Union | Tube End x Tube End

Quantity

Specifications for Variant SKU: 31165300 Dixon
Brand:	Legris
Shape (Orientation):	Straight
Ends Configuration:	1/8in Push-to-Connect, 1/8in Push-to-Connect, Some Ends Match
Material(s):	Nylon, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Use:
Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube. Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
Positive seal: sealing and holding is accomplished instantaneously. Reusable: connect and disconnect numerous times. Full flow: fitting seals on outside diameter of tubing.
Construction:
Black body is glass-filled nylon. Nitrile Rubber D seal. Polypropylene release button. Silicone free.
Installation:
Quick connect and disconnect, no tools required. To connect, simply push tubing in. To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
Maximum circuit pressure depends equally on the type and diameter of the tube used. Pressure rating given at ambient temperature 70°F/21°C.

Part Number	Tube O.D. Ends
31165300	1/8"
31160400	5/32"
31165600	1/4"
31160800	5/16"
31166000	3/8"
31166200	1/2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
