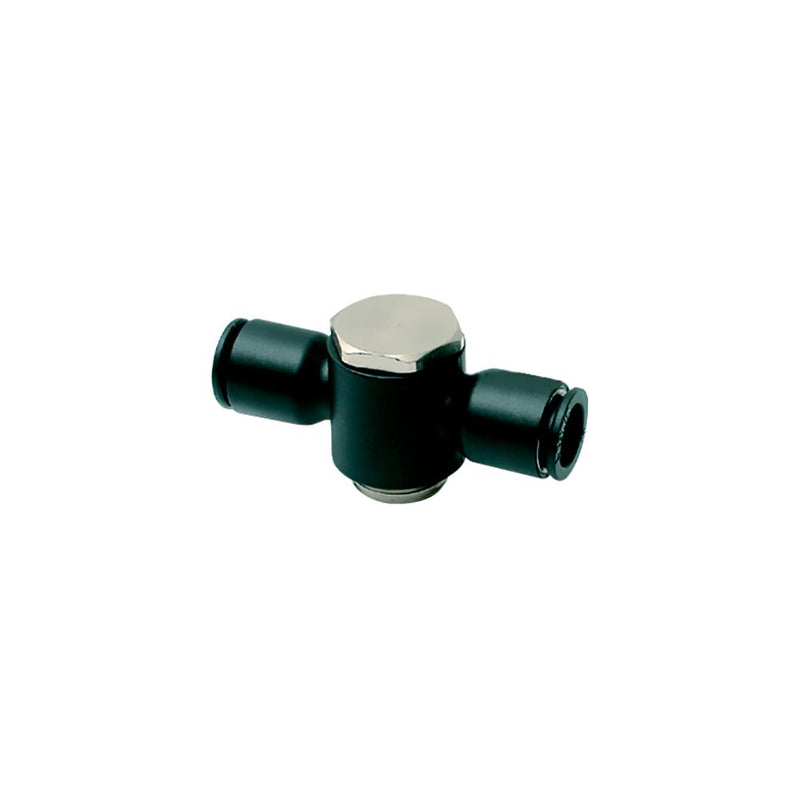

3119 08 17 by Parker | Legris Banjo Fittings | 8 mm Tube Size x 3/8" Male BSPP Thread | 61 mm Length | Double Banjo | Polymer | Pack of 10

Save $15.73

$173.03

$173.03 - $173.03

$173.03

$157.30

$157.30 - $157.30

$157.30

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3119 Double Banjo, BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3119 08 17 Parker \| 10 \|
Series:	3119 Series
Shape (Orientation):	Banjo
Material(s):	Nickel-Plated Brass, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Screwed from above, for minimum space between connections 360° orientable Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration Body: Technical Polymer O-Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	G	H	L/2	Kg
3119 04 19*	4 mm	M5x0.8	4 mm	-	8.5 mm	13 mm	8 mm	.005 Kg
3119 06 10	4 mm	1/8"	4 mm	13 mm	11 mm	17 mm	20 mm	.014 Kg
3119 06 13	6 mm	1/4"	5.5 mm	17 mm	13.5 mm	21 mm	26.5 mm	.035 Kg
3119 08 13	8 mm	1/4"	5.5 mm	17 mm	13.5 mm	21 mm	27 mm	.026 Kg
3119 08 17	8 mm	3/8"	5.5 mm	20 mm	16 mm	24.5 mm	30.5 mm	.053 Kg

*With screwdriver slot

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
