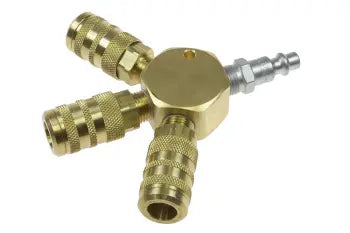

3122-14X by Coilhose | Flat Hex Manifold Assembly | 3 Port Flat Hex Manifold | 1/4" 6 Ball ARO Interchange

3122-14X by Coilhose | Flat Hex Manifold Assembly | 3 Port Flat Hex Manifold | 1/4" 6 Ball ARO Interchange

Save $29.80 Save $29.80
$74.50
$74.50 - $74.50
$74.50
$44.70
$44.70 - $44.70
$44.70
Coilhose Pneumatics - Manifold Assemblies
Specifications for Variant SKU: 3122-14X Coilhose
Overview:
  • Coilhose Manifold Assemblies offer an excellent alternative to running multiple hose or pipe lines from the compressor. These assemblies are available in two, three, four and six port configurations, and are ideal for assembly stations, contractor work stations, multiple branching for remote lines, and pneumatic control outlet panel junction points. These units provide the most effective, yet economical means of distributing pneumatic power to more than one location from a single source.

Model Description
Straight Manifold Assembly Coilhose's Straight Manifold Assembly is available with four or six 1/4" Six Ball Automatic Industrial Couplers and two 3/8" FPT connection ports. Front-to-back and top-to-bottom mounting holes provide convenient positioning alternatives to fit any application. Includes: (1) Straight Manifold and (4) or (6) Six Ball Automatic Industrial Interchange Couplers
3043-15C Four Port Straight Manifold Assembly
3063-15C Six Port Straight Manifold Assembly
Tri-Pod Manifold Assembly The Tri-Pod Manifold Assembly is available with three 1/4" couplers and one 1/4" connector. Assembled with Six Ball ARO, Automotive or Industrial Interchange Couplers. Best for overhead and small compressor applications. Includes: (1) Tri-Pod Manifold, (1) 1/4" Connector and (3) 1/4" Six Ball Couplers
3002-14X Tri-Pod with Six Ball ARO Interchange Coupler
3002-15X Tri-Pod with Six Ball Industrial Interchange Coupler
3002-16X Tri-Pod with Six Ball Automotive Interchange Coupler
Tee Manifold Assembly The Tee Manifold Assembly is a good choice for two-way 90° split installation. Assembled with Six Ball ARO, Automotive or Industrial Interchange Couplers. Includes: (1) Tee Manifold, (1) 1/4" Connector and (2) 1/4" Six Ball Couplers
T004-14X Tee with Six Ball ARO Interchange Coupler
T004-15X Tee with Six Ball Industrial Interchange Coupler
T004-16X Tee with Six Ball ARO Interchange Coupler
Flat Hex Manifold Assembly The Flat Hex Manifold Assembly is designed to lie flat on the floor, safely distributing three hose lines to the work area. Assembled with Six Ball ARO, Automotive or Industrial Interchange Couplers. Includes: (1) HEX Manifold, (1) 1/4" Connector and (3) 1/4" Six Ball Couplers
3122-14X Hex with Six Ball ARO Interchange Coupler
3122-15X Hex with Six Ball Industrial Interchange Coupler
3122-16X Hex with Six Ball Automotive Interchange Coupler
Cross Manifold Assembly The Cross Manifold Assembly is ideal for three way 90° air distribution. Assembled with Six Ball ARO, Automotive or Industrial Interchange Couplers. Includes: (1) Cross Manifold, (1) 1/4" Connector and (3) 1/4" Six Ball Couplers
X004-14X Cross with Six Ball ARO Interchange Coupler
X004-15X Cross with Six Ball Industrial Interchange Coupler
X004-16X Cross with Six Ball Automotive Interchange Coupler
