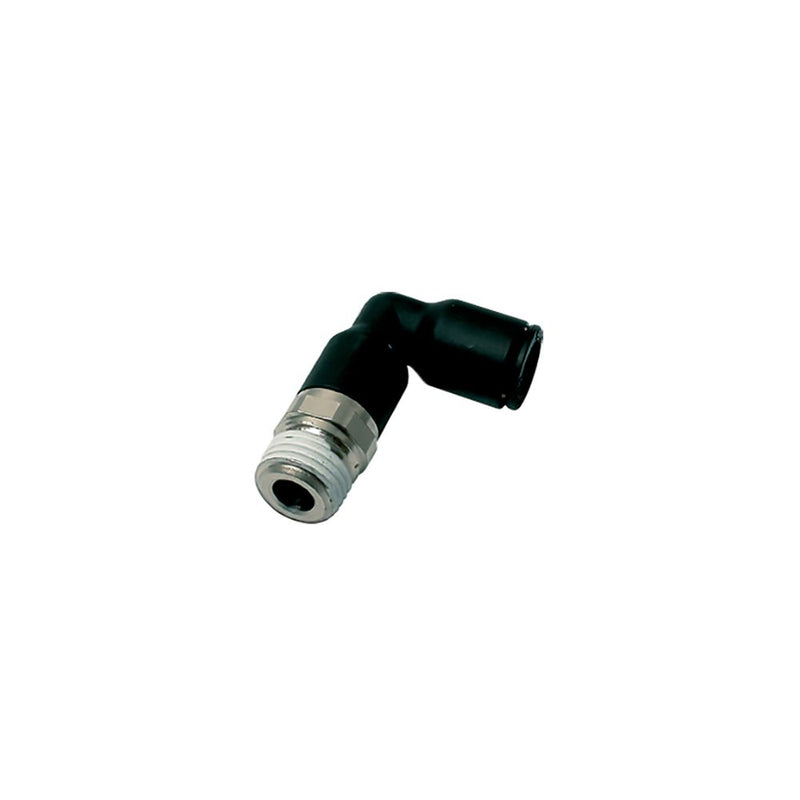

3129 60 18 by Parker | Legris Stud Fitting | 3/8" Push-to-Connect x 3/8" Male NPT Thread | 18 mm Hex | 90° Elbow | Nylon | Pack of 10

Save $10.17

$111.88

$111.88 - $111.88

$111.88

$101.71

$101.71 - $101.71

$101.71

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3129 Extended Stud Elbow, Male BSPT Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3129 60 18 Parker \| 10 \|
Series:	3129 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Coated, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	F	G	H	L	Oz
3129 53 11	1/8"	1/8"	11 mm	.33"	.91"	.75"	.36 Oz
3129 53 14	1/8"	1/4"	14 mm	.33"	.93"	.75"	.68 Oz
3129 56 11	1/4"	1/8"	11 mm	.43"	1.12"	.93"	.51 Oz
3129 56 14	1/4"	1/4"	14 mm	.43"	1.08"	.93"	.73 Oz
3129 56 18	1/4"	3/8"	17 mm	.43"	1.12"	.93"	.80 Oz
3129 60 11	3/8"	1/8"	17 mm	.33"	1.40"	1.34"	1.30 Oz
3129 60 14	3/8"	1/4"	17 mm	.63"	1.41"	1.33"	1.41 Oz
3129 60 18	3/8"	3/8"	18 mm	.63"	1.45"	1.33"	1.73 Oz

Pre-coated thread

The body swivels for positioning purposes.
