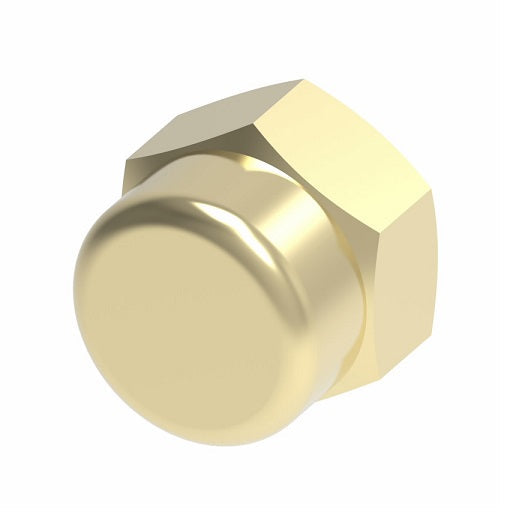

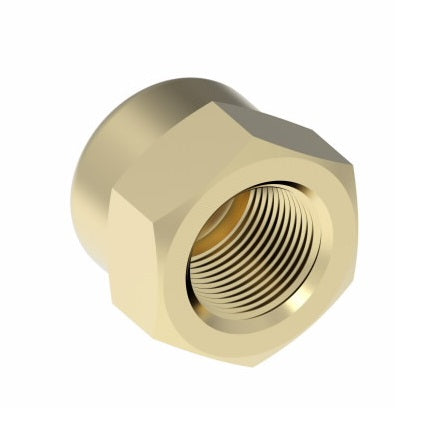

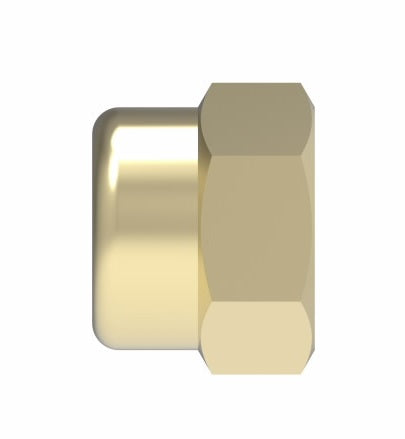

3129X2 by Danfoss | Pipe Adapter | Cap | 1/8" Female NPTF (Short Thread) | Brass
3129X2 by Danfoss | Pipe Adapter | Cap | 1/8" Female NPTF (Short Thread) | Brass
3129X2 by Danfoss | Pipe Adapter | Cap | 1/8" Female NPTF (Short Thread) | Brass
3129X2 by Danfoss | Pipe Adapter | Cap | 1/8" Female NPTF (Short Thread) | Brass

3129X2 by Danfoss | Pipe Adapter | Cap | 1/8" Female NPTF (Short Thread) | Brass

$1.86 - $1.86
$1.86
$1.86 - $1.86
$1.86

Aeroquip® by Danfoss
Pipe Adapter - Cap
Specifications for Variant SKU: 3129X2 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Female NPTF
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Female Pipe Thread
(PTF Short Thread)		 Hex
C		 L
3129X2 1/8" 9/16" 0.50"
3129X4 1/4" 11/16" 0.59"
3129X6 3/8" 13/16" 0.68"
