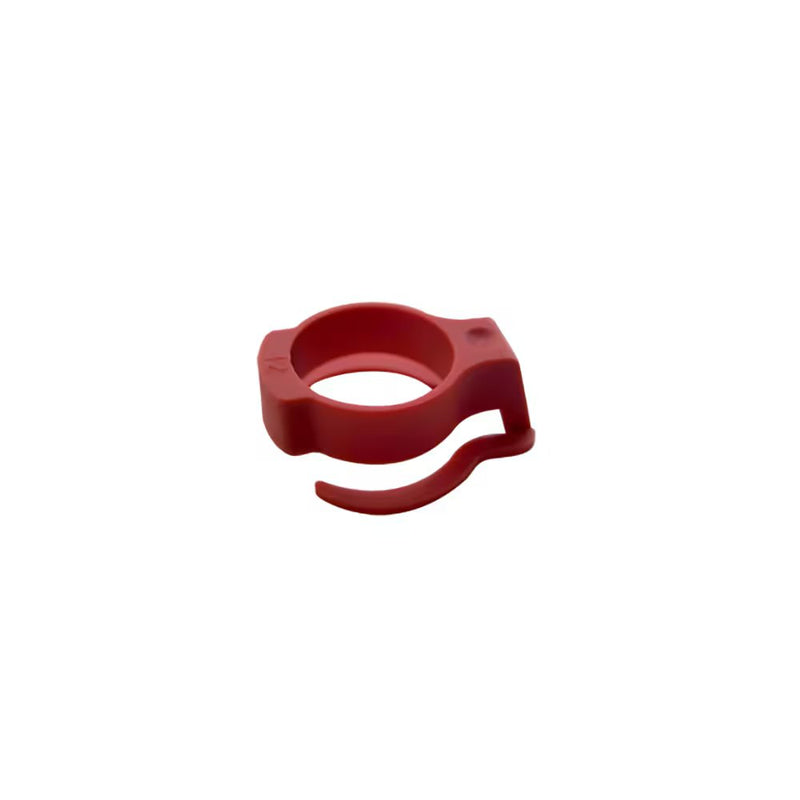

3130 06 03 by Parker | Legris | 6 mm Tamper Proof Safety Clip | Red | Polymer | Pack of 100

Save $29.33

$73.33

$73.33 - $73.33

$73.33

$44.00

$44.00 - $44.00

$44.00

by Parker Hannifin
LF 6100® Push-In Fittings:3130 Tamper-Proof Safety Clip

Package Quantity: 100 Units

Specifications for Variant SKU: 3130 06 03 Parker \| 100 \|
Series:	3130 Series
Shape (Orientation):	No Orientation
Material(s):	Polymer
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Ranges: LF3000®, LIQUIfit® Working Temperature: -30°C to +95°C Component Materials: Tamper-proof safety clip, release button cover, clip: technical polymer
Advantages:	Safety: Protection of operators and equipment Prevents accidental disconnection Identification: 6 color coding for fluid circuit identification Easy disconnection with dismounting tool


Part Number	ØD	H	K	Kg
3130 06 03	6 mm	7.8 mm	3.1 mm	.001 Kg
3130 10 03	10 mm	10.8 mm	4.2 mm	.002 Kg
3130 56 03	1/4"	8 mm	3 mm	.001 Kg
3130 08 03	3/8"	11 mm	4 mm	.001 Kg
3130 62 03	1/2"	14 mm	6 mm	.004 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
