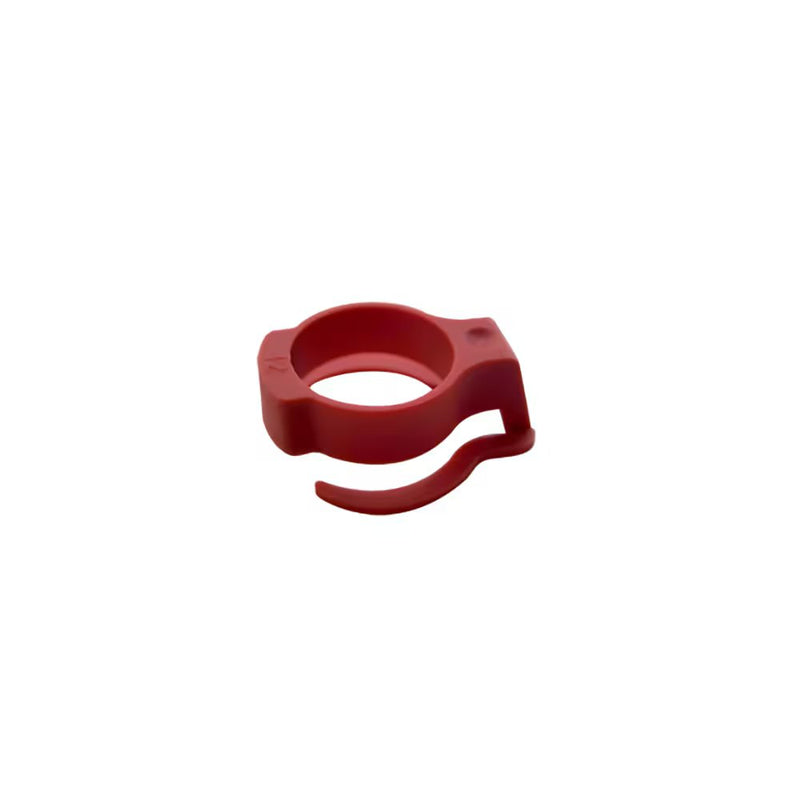

3130 10 03 by Parker | Legris | 10 mm Tamper Proof Safety Clip | Red | Polymer | Pack of 100

Save $12.55

$84.55

$84.55 - $84.55

$84.55

$72.00

$72.00 - $72.00

$72.00

by Parker Hannifin
LF 6100® Push-In Fittings:3130 Tamper-Proof Safety Clip

Package Quantity: 100 Units

Specifications for Variant SKU: 3130 10 03 Parker \| 100 \|
Series:	3130 Series
Shape (Orientation):	No Orientation
Material(s):	Polymer
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Ranges: LF3000®, LIQUIfit® Working Temperature: -30°C to +95°C Component Materials: Tamper-proof safety clip, release button cover, clip: technical polymer
Advantages:	Safety: Protection of operators and equipment Prevents accidental disconnection Identification: 6 color coding for fluid circuit identification Easy disconnection with dismounting tool


Part Number	ØD	H	K	Kg
3130 06 03	6 mm	7.8 mm	3.1 mm	.001 Kg
3130 10 03	10 mm	10.8 mm	4.2 mm	.002 Kg
3130 56 03	1/4"	8 mm	3 mm	.001 Kg
3130 08 03	3/8"	11 mm	4 mm	.001 Kg
3130 62 03	1/2"	14 mm	6 mm	.004 Kg
