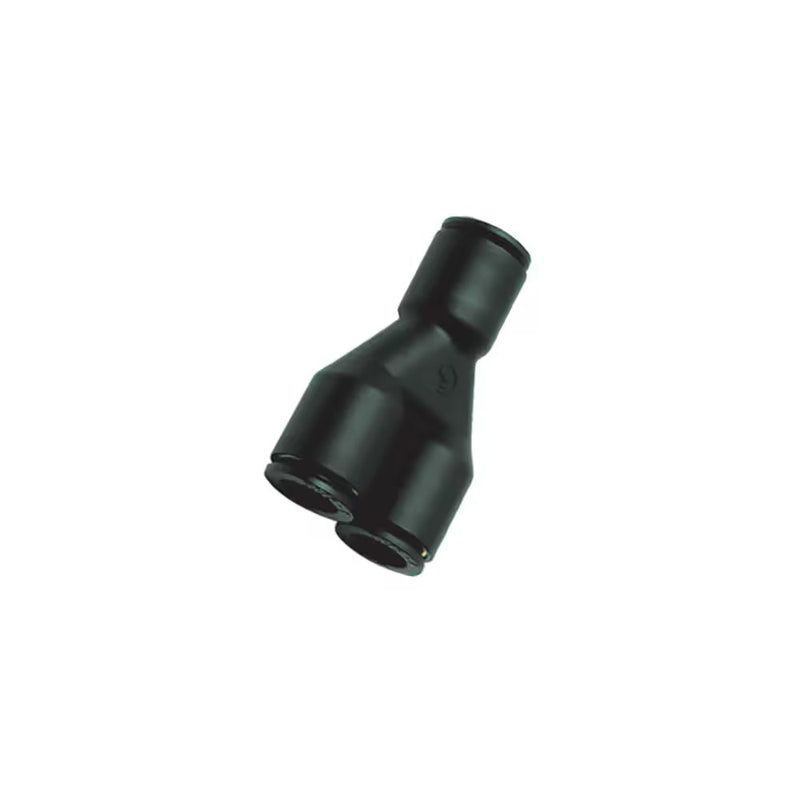

3140 10 00 by Parker | Legris Push-In Fitting | 10 mm Push-to-Connect x 10 mm Push-to-Connect | 53 mm Length | Y | Polymer | Pack of 10

Save $52.95

$132.37

$132.37 - $132.37

$132.37

$79.42

$79.42 - $79.42

$79.42

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3140 Equal and Unequal Single Y Piece

Package Quantity: 10 Units

Specifications for Variant SKU: 3140 10 00 Parker \| 10 \|
Brand:	LF 3000®
Series:	3140 Series
Shape (Orientation):	Y
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	ØD1	H	K	L	N	Kg
3140 04 00	4 mm	4 mm	17.5 mm	8.5 mm	28.5 mm	9 mm	.002 Kg
3140 04 06	4 mm	6 mm	17.5 mm	10.5 mm	33 mm	9 mm	.002 Kg
3140 06 00	6 mm	6 mm	21.5 mm	10.5 mm	35 mm	11 mm	.004 Kg
3140 06 08	6 mm	8 mm	22.5 mm	13.5 mm	41 mm	11.5 mm	.005 Kg
3140 08 00	8 mm	8 mm	28 mm	13.5 mm	45 mm	14.5 mm	.006 Kg
3140 08 10	8 mm	10 mm	28 mm	16 mm	47 mm	14.5 mm	.008 Kg
3140 10 00	10 mm	10 mm	33 mm	16 mm	53 mm	17 mm	.010 Kg
3140 10 12	10 mm	12 mm	33 mm	19 mm	57 mm	19 mm	.012 Kg
3140 12 00	12 mm	12 mm	39 mm	19 mm	57 mm	20 mm	.017 Kg
