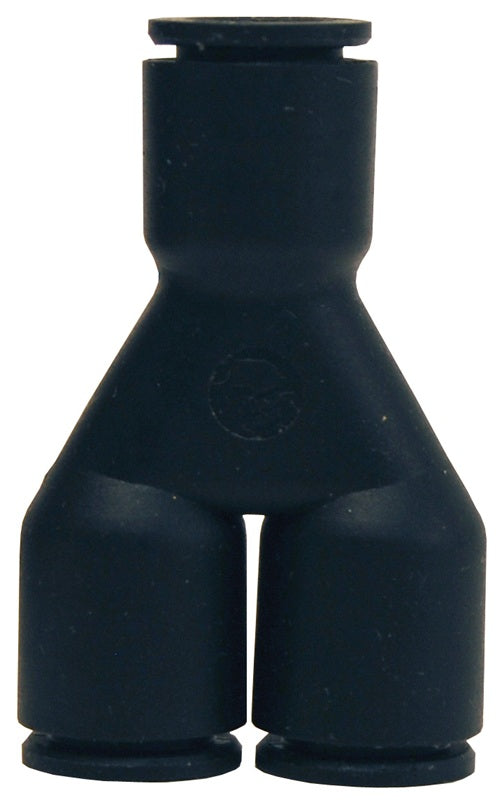

31400800 by Dixon Valve | Legris Push-In Fitting | Union Tube Wye | 5/16" Tube OD | Nylon

Name: 31400800 by Dixon Valve | Legris Push-In Fitting | Union Tube Wye | 5/16" Tube OD | Nylon
Brand: Dixon
SKU: 31400800 Dixon
Price: 7.95 USD
Availability: InStock

Save $5.30

$13.25

$13.25 - $13.25

$13.25

$7.95

$7.95 - $7.95

$7.95

Dixon Valve & Coupling
Legris Push-In Fitting | Union Tube Wye | Tube End x Tube End x Tube End

Quantity

Specifications for Variant SKU: 31400800 Dixon
Brand:	Legris
Shape (Orientation):	Y
Ends Configuration:	5/16in Push-to-Connect, 5/16in Push-to-Connect, Some Ends Match
Material(s):	Nylon, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Use:
Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube. Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
Positive seal: sealing and holding is accomplished instantaneously. Reusable: connect and disconnect numerous times. Full flow: fitting seals on outside diameter of tubing.
Construction:
Black body is glass-filled nylon. Nitrile Rubber D seal. Polypropylene release button. Silicone free.
Installation:
Quick connect and disconnect, no tools required. To connect, simply push tubing in. To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
Maximum circuit pressure depends equally on the type and diameter of the tube used. Pressure rating given at ambient temperature 70°F/21°C.

Part Number	Tube O.D. Ends
31405300	1/8"
31400400	5/32"
31405600	1/4"
31400800	5/16"
31406000	3/8"
