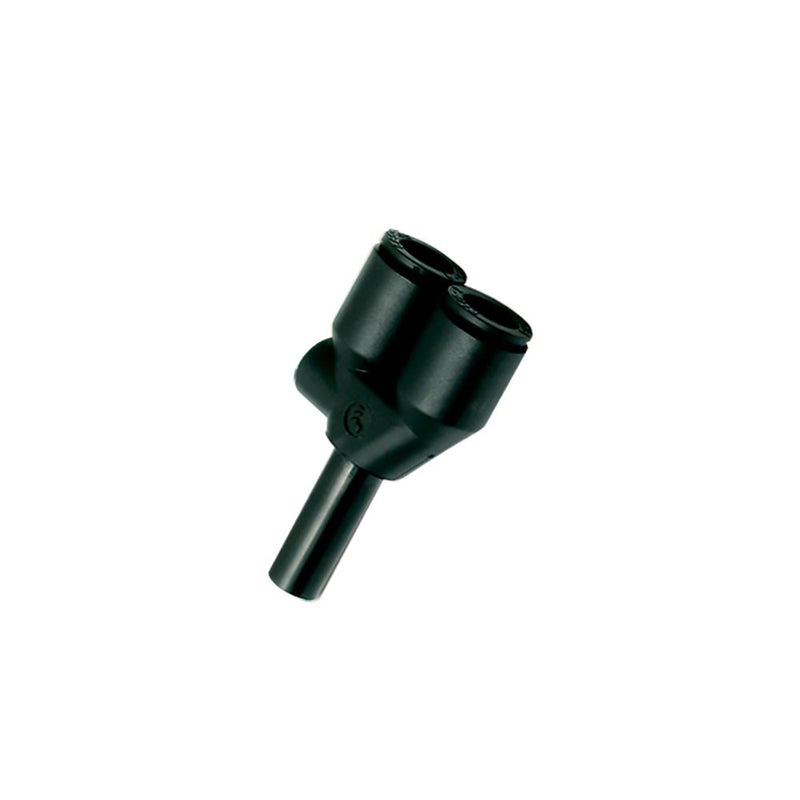

3142 56 00 by Parker | Plug-In Fitting | 1/4" Push-to-Connect x 1/4" Tube Stem | 1.60" Length | Y | Nylon | Pack of 10

Save $40.38

$100.95

$100.95 - $100.95

$100.95

$60.57

$60.57 - $60.57

$60.57

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3142 - plug-in “Y” fractional inch

Package Quantity: 10 Units

Specifications for Variant SKU: 3142 56 00 Parker \| 10 \|
Brand:	LF 3000®
Series:	3142 Series
Shape (Orientation):	Y
Material(s):	Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance Silicone-Free
Markets:	Pneumatic Industrial Automation Robotic Printing Packaging Textile
Applications:	Air Cutting Fluids Inert Gases Vacuum
Pressure Range	Up to 290 psi (20 bar) 3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range	-4° to +175° F (-20° to +80° C) 3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability	28" Hg


Part Number	ØD1	ØD2	H	L	L1	N	Oz
3142 53 00	1/8"	1/8"	.69"	1.36"	1.00"	.35"	.13 Oz
3142 56 00	1/4"	1/4"	.87"	1.60"	1.02"	.45"	.282 Oz
3142 60 00	3/8"	3/8"	1.30"	2.26"	1.42"	.67"	.741 Oz
