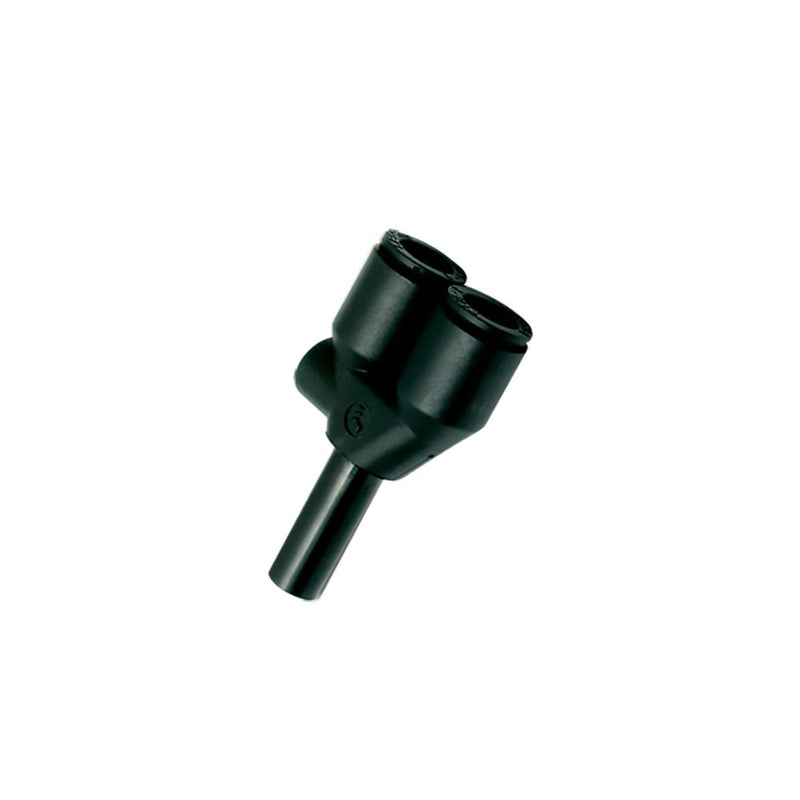

3142 60 00 by Parker | Plug-In Fitting | 3/8" Push-to-Connect x 3/8" Tube Stem | 2.23" Length | Y | Nylon | Pack of 10

Save $42.34

$105.85

$105.85 - $105.85

$105.85

$63.51

$63.51 - $63.51

$63.51

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3142 - plug-in “Y” fractional inch

Package Quantity: 10 Units

Specifications for Variant SKU: 3142 60 00 Parker \| 10 \|
Brand:	LF 3000®
Series:	3142 Series
Shape (Orientation):	Y
Material(s):	Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance Silicone-Free
Markets:	Pneumatic Industrial Automation Robotic Printing Packaging Textile
Applications:	Air Cutting Fluids Inert Gases Vacuum
Pressure Range	Up to 290 psi (20 bar) 3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range	-4° to +175° F (-20° to +80° C) 3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability	28" Hg


Part Number	ØD1	ØD2	H	L	L1	N	Oz
3142 53 00	1/8"	1/8"	.69"	1.36"	1.00"	.35"	.13 Oz
3142 56 00	1/4"	1/4"	.87"	1.60"	1.02"	.45"	.282 Oz
3142 60 00	3/8"	3/8"	1.30"	2.26"	1.42"	.67"	.741 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
