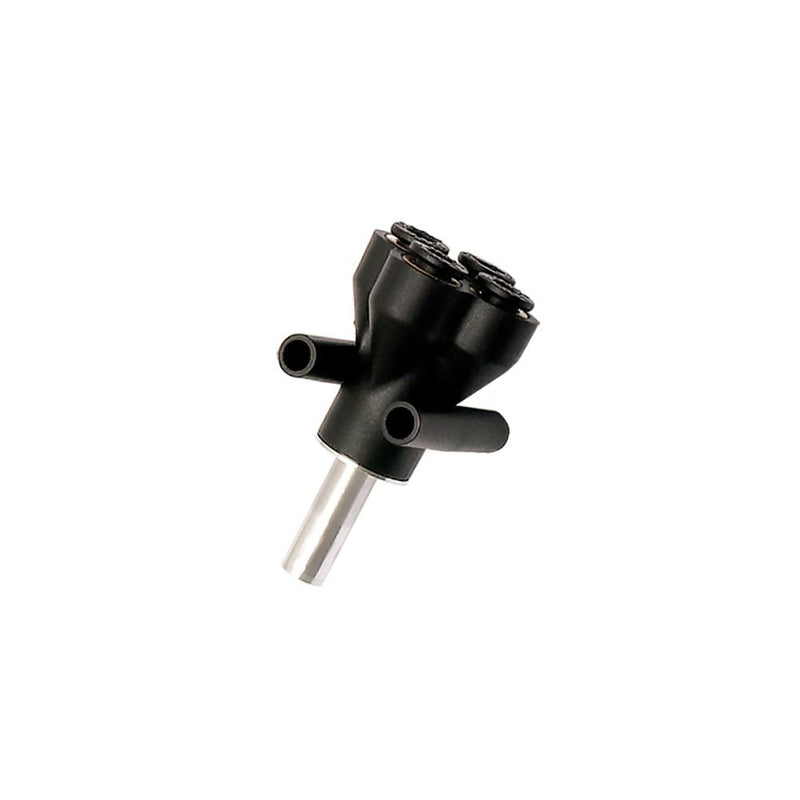

3143 04 06 by Parker | Legris Plug-In Fittings | 4 mm Push-to-Connect x 6 mm Tube Stem | 49.5 mm Length | Double Y | Polymer

3143 04 06 by Parker | Legris Plug-In Fittings | 4 mm Push-to-Connect x 6 mm Tube Stem | 49.5 mm Length | Double Y | Polymer | Pack of 10

Save $22.09 Save $22.09
$175.02
$175.02 - $175.02
$175.02
$152.93
$152.93 - $152.93
$152.93

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3143 Multiple Plug-In Y Piece

Package Quantity: 10 Units

Specifications for Variant SKU: 3143 04 06 Parker | 10 |
Brand: LF 3000®
Series: 3143 Series
Shape (Orientation): Double Y
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 K K1 L L1 N N1 Kg
3143 04 06 4 mm 6 mm 26 mm 21.5 mm 49.5 mm 35.5 mm 11 mm 8.5 mm .018
3143 04 08 4 mm 8 mm 26 mm 21.5 mm 51 mm 32 mm 11 mm 8.5 mm .021
3143 06 08 6 mm 8 mm 31.5 mm 26.5 mm 57.5 mm 39 mm 12 mm 10 mm .035
