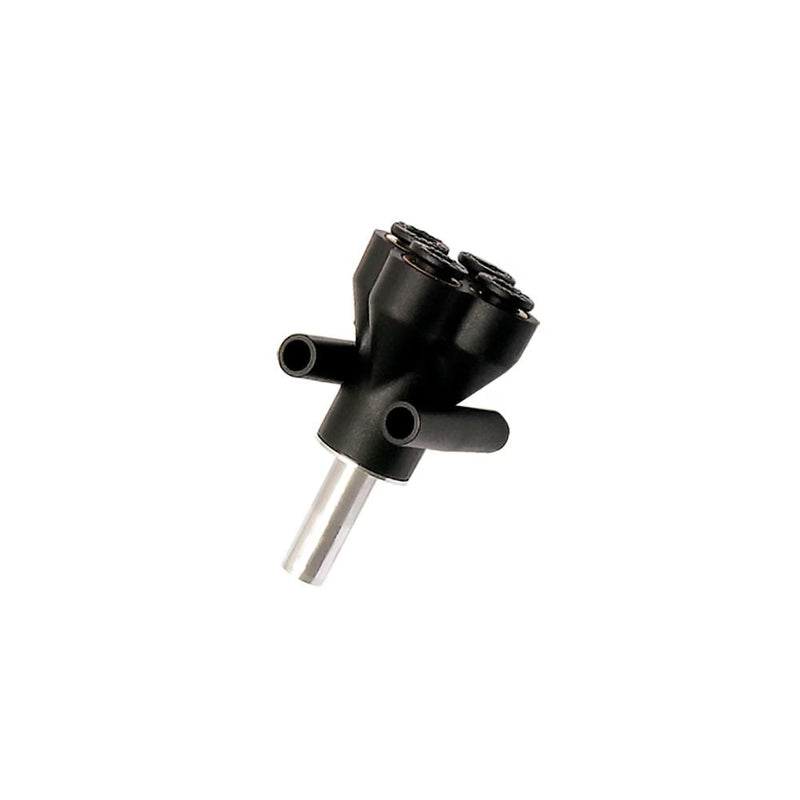

3143 06 08 by Parker | Legris Plug-In Fittings | 6 mm Push-to-Connect x 8 mm Tube Stem | 57.5 mm Length | Double Y | Polymer

3143 06 08 by Parker | Legris Plug-In Fittings | 6 mm Push-to-Connect x 8 mm Tube Stem | 57.5 mm Length | Double Y | Polymer | Pack of 10

Save $26.90 Save $26.90
$220.90
$220.90 - $220.90
$220.90
$194.00
$194.00 - $194.00
$194.00

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3143 Multiple Plug-In Y Piece

Package Quantity: 10 Units

Specifications for Variant SKU: 3143 06 08 Parker | 10 |
Brand: LF 3000®
Series: 3143 Series
Shape (Orientation): Double Y
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 K K1 L L1 N N1 Kg
3143 04 06 4 mm 6 mm 26 mm 21.5 mm 49.5 mm 35.5 mm 11 mm 8.5 mm .018
3143 04 08 4 mm 8 mm 26 mm 21.5 mm 51 mm 32 mm 11 mm 8.5 mm .021
3143 06 08 6 mm 8 mm 31.5 mm 26.5 mm 57.5 mm 39 mm 12 mm 10 mm .035

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
