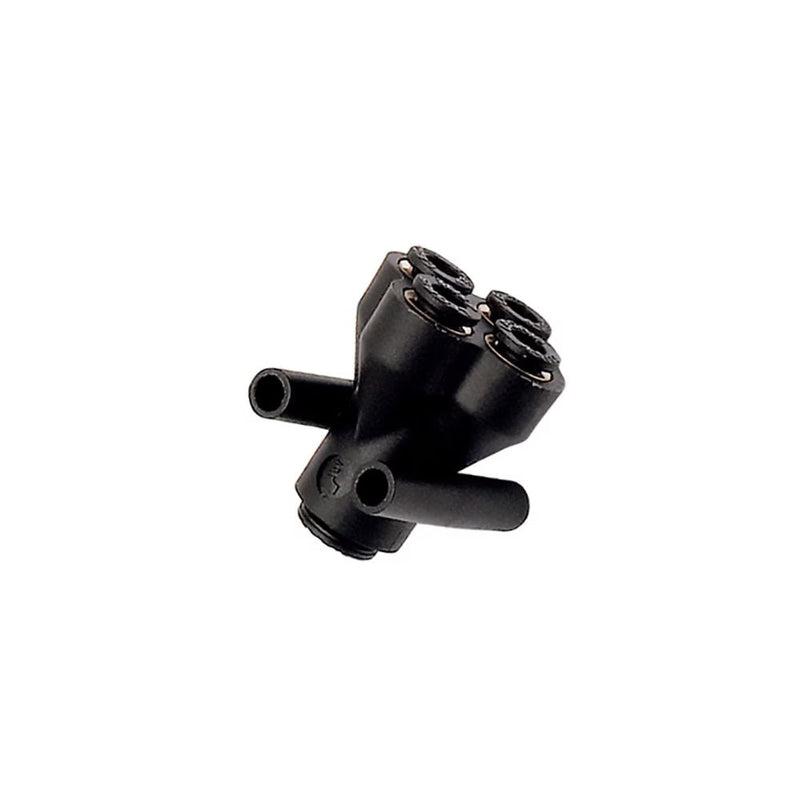

3144 06 06 by Parker | Legris Multiple Fittings | 6mm Push-to-Connect x 6mm Push-to-Connect | 37.5mm Length | Multiple Y | Polymer | Pack of 10

Save $20.38

$158.25

$158.25 - $158.25

$158.25

$137.87

$137.87 - $137.87

$137.87

by Parker Hannifin
LF 3000® Push-In Fittings / Multiple Fittings:Equal and Unequal Multiple Y Piece

Package Quantity: 10 Units

Specifications for Variant SKU: 3144 06 06 Parker \| 10 \|
Brand:	LF 3000®
Series:	3144 Series
Shape (Orientation):	Double Y
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	ØD1	K	K1	L	N	N1	ØT	Kg
3144 04 04	4 mm	4 mm	25.5 mm	21 mm	30.5 mm	10 mm	8.5 mm	3.7 mm	.015 Kg
3144 04 06	4 mm	6 mm	25.5 mm	21 mm	30.5 mm	10 mm	8.5 mm	3.7 mm	.013 Kg
3144 04 56	5/32"	1/4"	1.00"	.83"	1.20"	.39"	.34"	.15"	.011 Kg
3144 06 06	6 mm	6 mm	31.5 mm	26.5 mm	37.5 mm	12 mm	10 mm	3.7 mm	.032 Kg
3144 06 08	6 mm	8 mm	31.5 mm	26.5 mm	38 mm	12 mm	10 mm	3.7 mm	.026 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
