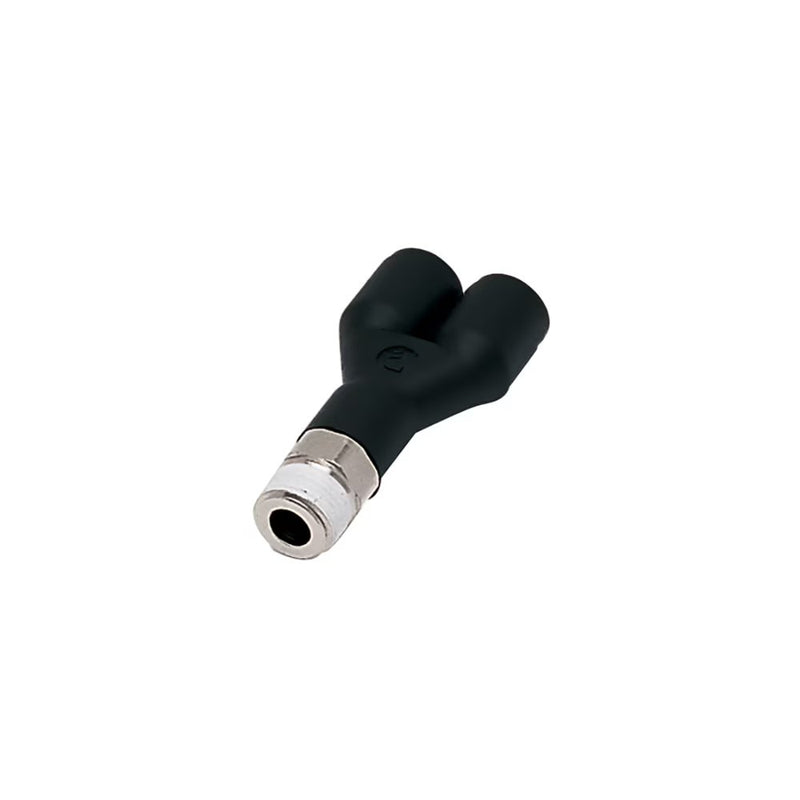

3148 60 18 by Parker | LF3000® Push-to-Connect Fittings | 3/8" Push-to-Connect x 3/8" Male NPT Thread | 18 mm Hex | 2.28" Length | Y | Nylon

3148 60 18 by Parker | LF3000® Push-to-Connect Fittings | 3/8" Push-to-Connect x 3/8" Male NPT Thread | 18 mm Hex | 2.28" Length | Y | Nylon | Pack of 10

Save $81.50 Save $81.50
$203.75
$203.75 - $203.75
$203.75
$122.25
$122.25 - $122.25
$122.25

by Parker Hannifin
LF 3000® Push-In Fittings / Multiple Fittings:3148 - “Y” male connector fractional inch tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3148 60 18 Parker | 10 |
Brand: LF 3000®
Series: 3148 Series
Shape (Orientation): Y
Material(s): Nylon, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD NPT (C) F H K L N Oz
3148 04 11 5/32" 1/8" 11 mm 1.28" .33" .69" .35" .42 Oz
3148 04 14 5/32" 1/4" 14 mm 1.30" .33" .69" .35" .79 Oz
3148 56 11 1/4" 1/8" 11 mm 1.61" .43" .87" .45" .59 Oz
3148 56 14 1/4" 1/4" 14 mm 1.56" .43" .87" .45" .80 Oz
3148 60 14 3/8" 1/4" 17 mm 2.24" .63" 1.30" .67" 1.61 Oz
3148 60 18 3/8" 3/8" 18 mm 2.28" .63" 1.30" .67" 1.94 Oz
