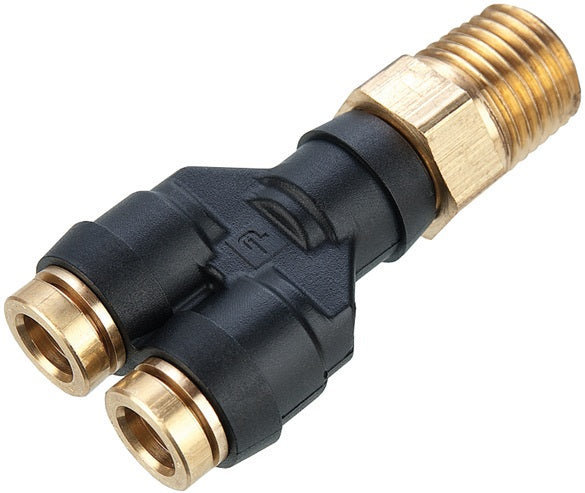

31485611DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Y Connector | 1/8" Male NPT x 1/4" Tube OD x 1/4" Tube OD | Composite/Brass

31485611DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Y Connector | 1/8" Male NPT x 1/4" Tube OD x 1/4" Tube OD | Composite/Brass

Save $1.95 Save $1.95
$20.75
$20.75 - $20.75
$20.75
$18.80
$18.80 - $18.80
$18.80

Dixon Valve & Coupling
Legris D.O.T. Push-In Fitting | Push-In Y Connector | Male NPT x Tube End x Tube End

Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle.
Specifications for Variant SKU: 31485611DOT Dixon
Shape (Orientation): Y
Ends Configuration: 1/4in Push-to-Connect, 1/8in Male NPT
Material(s): Plastic, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Suitable fluids: compressed air only.
  • Full 360° rotation, but lock into place preventing accidental movement of fitting.
  • 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
  • Composite body (Unless noted below)
  • Brass collet
  • Stainless steel tube support
  • Nitrile Rubber seal
  • Brass threads
Specifications:
  • Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
  • Complies with the performance requirements of D.O.T FMVSS 571.106 (SAE J1131) and SAE J2494-3
  • Fitting can be oriented 360°, allowing proper positioning of the fitting.
Part Number Tube O.D. Male NPT
31485611DOT 1/4" 1/8"
31485614DOT 1/4" 1/4"
