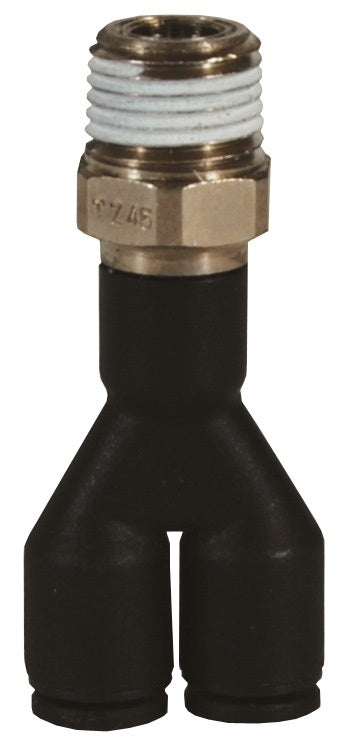

31485614 by Dixon Valve | Legris Push-In Fitting | Push-In Male Wye | 1/4" Tube OD x 1/4" Male NPT | Nylon / Nickel-Plated Brass

31485614 by Dixon Valve | Legris Push-In Fitting | Push-In Male Wye | 1/4" Tube OD x 1/4" Male NPT | Nylon / Nickel-Plated Brass

Save $1.04 Save $1.04
$11.12
$11.12 - $11.12
$11.12
$10.08
$10.08 - $10.08
$10.08

Dixon Valve & Coupling
Legris Push-In Fitting | Push-In Male Wye | Tube End x Tube End x Male NPT

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.

NOTE: Body is orientable for positioning purposes.
Specifications for Variant SKU: 31485614 Dixon
Brand: Legris
Shape (Orientation): Y
Ends Configuration: 1/4in Push-to-Connect, 1/4in Male NPT
Material(s): Nylon, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
  • Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Pre-applied thread sealant on all tapered male pipe threads.
Construction:
  • Nickel-plated brass threads.
  • Black body is glass-filled nylon.
  • Nitrile Rubber D seal.
  • Polypropylene release button.
  • Silicone free.
Specifications:
  • Working pressure: 290 PSI at ambient temperature
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
  • Vacuum capability: vacuum of 28" Hg (99% vacuum)
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Pressure rating given at ambient temperature 70°F/21°C.
Part Number Tube O.D. Ends Male NPT
31480411 5/32" 1/8"
31480414 5/32" 1/4"
31485611 1/4" 1/8"
31485614 1/4" 1/4"
