Name: 3150X2 by Danfoss | Pipe Adapter | Slotted Plug | 1/8" Male NPTF (Short Thread) | Brass
Brand: Danfoss/Eaton
SKU: 3150X2 Danfoss
Price: 1.05 USD
Availability: InStock

$1.05 - $1.05

$1.05

$1.05 - $1.05

$1.05

Aeroquip® by Danfoss

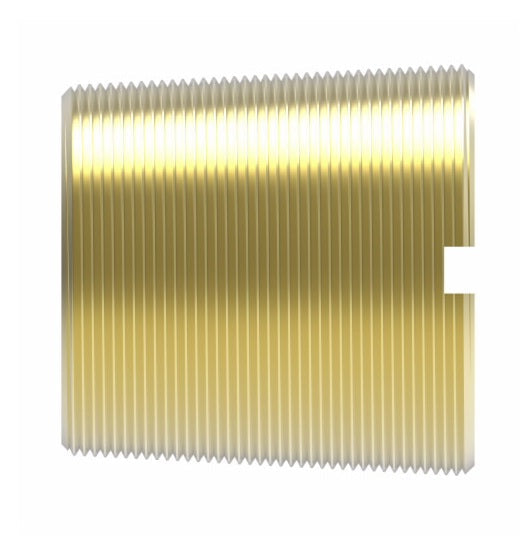

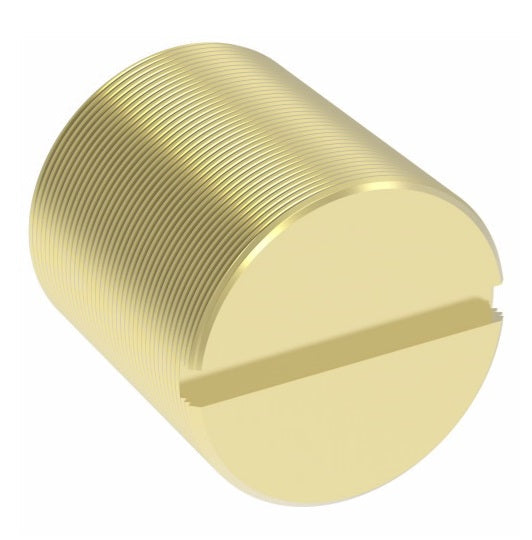

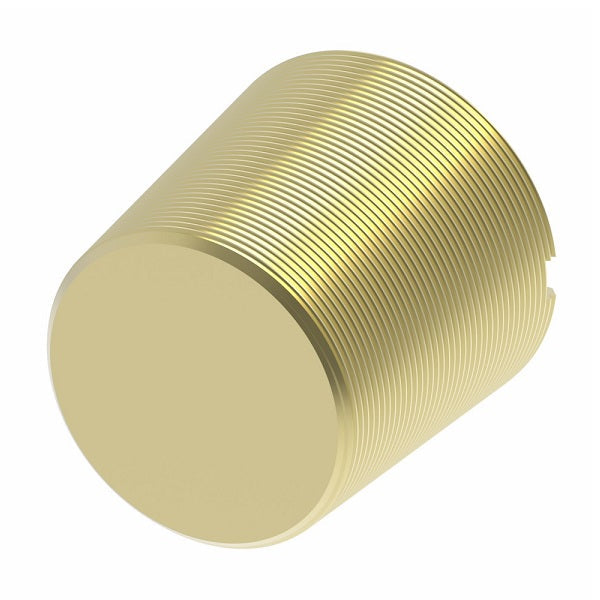

Pipe Adapter - Slotted Plug

Specifications for Variant SKU: 3150X2 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male NPTF
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Brass Part Number with Sealant	Male Pipe Thread (PTF Short Thread)	E	L
3129X2	-	1/8"	0.05"	0.28"
3150X4	3150X4Z	1/4"	0.08"	0.42"
3150X6	-	3/8"	0.09"	0.43"
