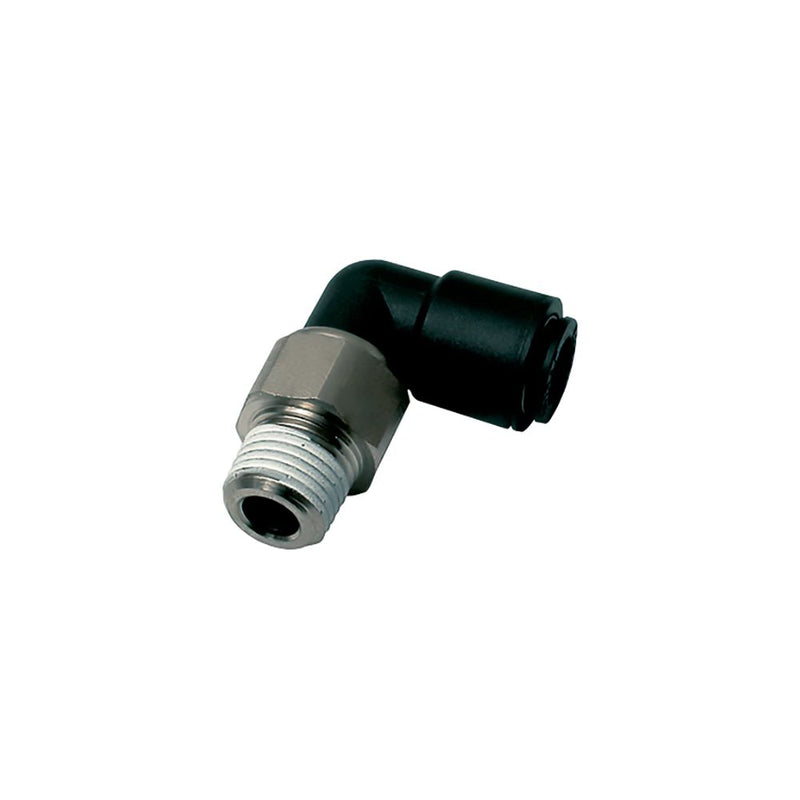

3159 04 11 by Parker | LF3000® Oscillating Swivel Fittings | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 12 mm Hex | 90° Elbow | Nylon | Pack of 10

Save $149.25

$373.12

$373.12 - $373.12

$373.12

$223.87

$223.87 - $223.87

$223.87

by Parker Hannifin
Oscillating Fitting:3159 - oscillating male elbow fractional inch tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3159 04 11 Parker \| 10 \|
Brand:	LF 3000®
Series:	3159 Series
Shape (Orientation):	90° Elbow
Material(s):	Nylon, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Swivel

Product Features:	Oscillating Fittings Prevents tube wear due to excessive flexing Optimum reliability and durability Simplifies circuit assembly
Markets:	Automotive Textile Packaging Semi-Conductor
Applications:	Robotics Automotive Process Semi-Conductors Textile Packaging
Compatible Fluids	Compressed air Other fluids: please consult us
Working Pressure	290 psi (20 bar) 145 psi (10 bar) self sealing fittings
Vacuum Capability	28" Hg
Working Temperature	-4° to 176° F (-20° to +80° C)


Part Number	ØD	NPT (C)	F	G	H	L	Oz
3159 04 11	5/32"	1/8"	12 mm	.43"	.85"	.69"	.49 Oz
3159 56 11	1/4"	1/8"	14 mm	.55"	1.04"	.81"	.71 Oz
3159 56 14	1/4"	1/4"	14 mm	.55"	1.04"	.81"	.78 Oz
