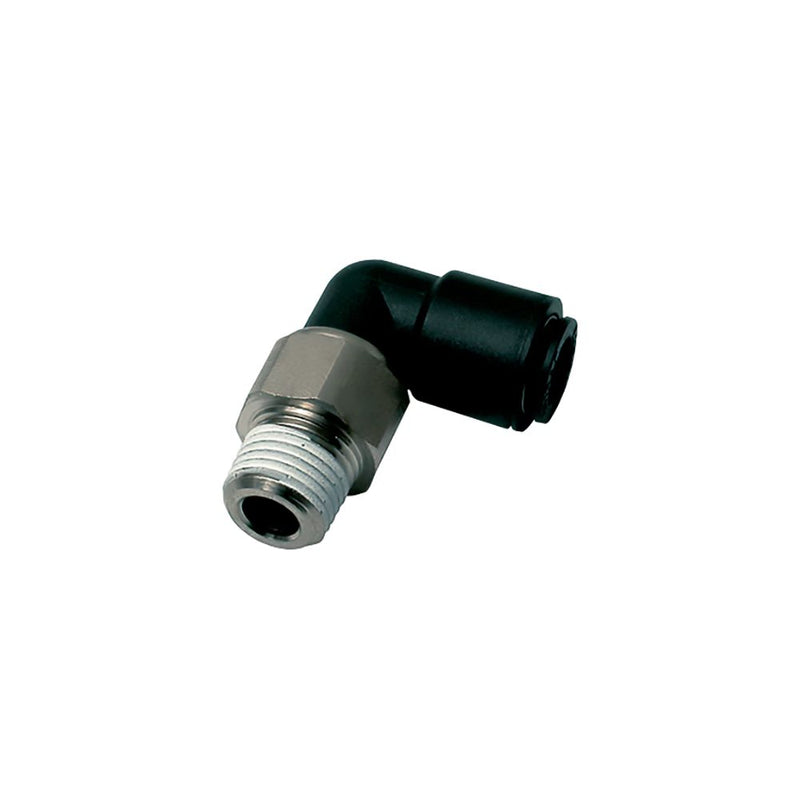

3159 56 11 by Parker | LF3000® Oscillating Swivel Fittings | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 14 mm Hex | 90° Elbow | Nylon

3159 56 11 by Parker | LF3000® Oscillating Swivel Fittings | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 14 mm Hex | 90° Elbow | Nylon | Pack of 10

Save $157.60 Save $157.60
$394.00
$394.00 - $394.00
$394.00
$236.40
$236.40 - $236.40
$236.40

by Parker Hannifin
Oscillating Fitting:3159 - oscillating male elbow fractional inch tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3159 56 11 Parker | 10 |
Brand: LF 3000®
Series: 3159 Series
Shape (Orientation): 90° Elbow
Material(s): Nylon, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Swivel
Product Features:
      Oscillating Fittings
  • Prevents tube wear due to excessive flexing
  • Optimum reliability and durability
  • Simplifies circuit assembly
Markets:
  • Automotive
  • Textile
  • Packaging
  • Semi-Conductor
Applications:
  • Robotics
  • Automotive Process
  • Semi-Conductors
  • Textile
  • Packaging
Compatible Fluids
  • Compressed air
    Other fluids: please consult us
Working Pressure
  • 290 psi (20 bar)
    145 psi (10 bar) self sealing fittings
Vacuum Capability
  • 28" Hg
Working Temperature
  • -4° to 176° F (-20° to +80° C)
Part Number ØD NPT (C) F G H L Oz
3159 04 11 5/32" 1/8" 12 mm .43" .85" .69" .49 Oz
3159 56 11 1/4" 1/8" 14 mm .55" 1.04" .81" .71 Oz
3159 56 14 1/4" 1/4" 14 mm .55" 1.04" .81" .78 Oz
