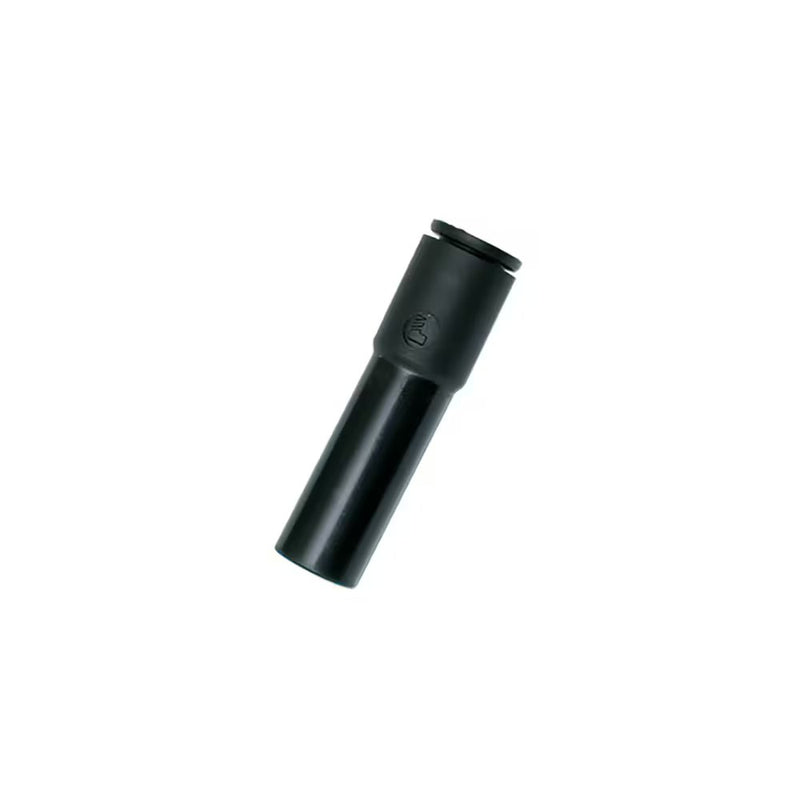

3166 60 62 by Parker | Plug-In Fitting Reducer | 3/8" Push-to-Connect x 1/2" Tube Stem | 2.01" Length | Straight | Nylon | Pack of 10

Save $20.34

$50.85

$50.85 - $50.85

$50.85

$30.51

$30.51 - $30.51

$30.51

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3166 Plug-In Reducer

Package Quantity: 10 Units

Specifications for Variant SKU: 3166 60 62 Parker \| 10 \|
Brand:	LF 3000®
Series:	3166 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD1	ØD2	G	L	L1	Oz
3166 53 04	1/4"	5/32"	.43"	1.79"	1.32"	.28 Oz
3166 53 55	1/8"	3/16"	.43"	1.79"	1.14"	.28 Oz
3166 53 56	1/8"	1/4"	.43"	1.79"	1.22"	.29 Oz
3166 04 55	5/32"	3/16"	.34"	1.48"	.83"	.11 Oz
3166 04 56	5/32"	1/4"	.34"	1.48"	.91"	.09 Oz
3166 04 60	5/32"	3/8"	.61"	1.61"	.81"	.35 Oz
3166 55 08	3/16"	5/16"	.43"	1.79"	1.06"	.19 Oz
3166 55 56	3/16"	1/4"	.43"	1.79"	1.22"	.22 Oz
3166 56 08	1/4"	5/16"	11 mm	41 mm	23 mm	-
3166 56 60	1/4"	3/8"	11 mm	41 mm	21 mm	-
3166 56 62	1/4"	1/2"	.63"	1.97"	.98"	.30 Oz
3166 08 60	5/16"	3/8"	.53"	1.93"	1.12"	.21 Oz
3166 08 62	5/16"	1/2"	.63"	2.01"	1.02"
3166 60 62	3/8"	1/2"	.63"	2.01"	1.04"	.31 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
