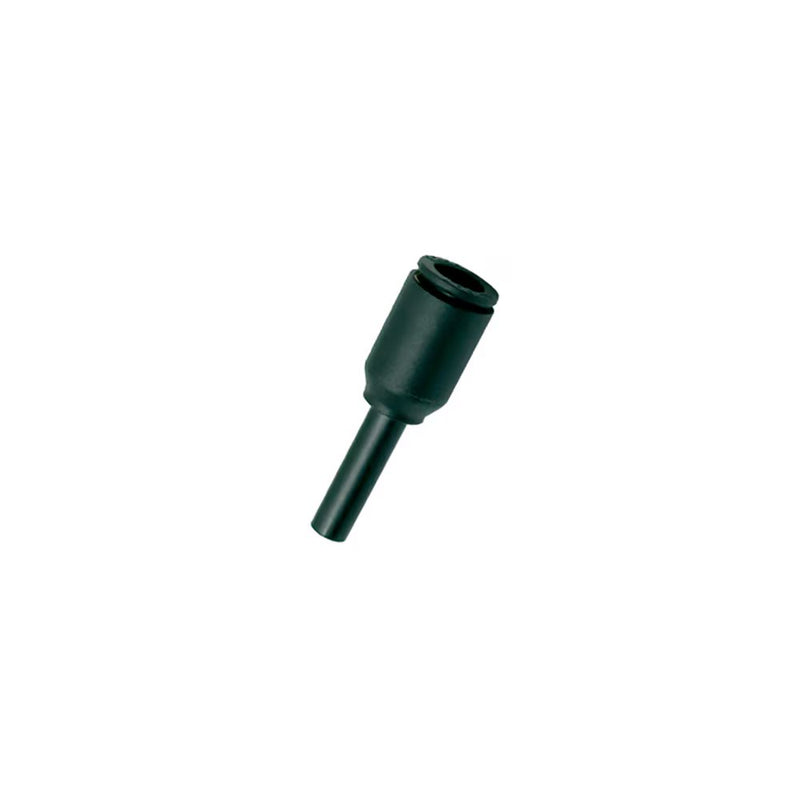

3168 04 53 by Parker | Legris Plug-In Fittings | 4 mm Push-to-Connect x 1/8" Tube Stem Increaser | 1.61" Length | Straight | Polymer | Pack of 10

Save $11.97

$70.10

$70.10 - $70.10

$70.10

$58.13

$58.13 - $58.13

$58.13

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3168 Plug-In Increaser

Package Quantity: 10 Units

Specifications for Variant SKU: 3168 04 53 Parker \| 10 \|
Brand:	LF 3000®
Series:	3168 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD1	ØD2	G	L	L1	Kg
3168 04 53	4 mm	1/8"	.43"	1.61"	1.16"	.0277 kg
3168 06 04	6 mm	4 mm	10.5 mm	35 mm	23 mm	.002 kg
3168 08 06	8 mm	6 mm	13.5 mm	45 mm	31.5 mm	.003 kg
3168 08 56	8 mm	1/4"	16 mm	40 mm	25.5 mm	.009 kg
3168 10 08	10 mm	8 mm	16 mm	42.5 mm	21 mm	.004 kg
3168 12 10	12 mm	10 mm	19 mm	49 mm	24.5 mm	.006 kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
