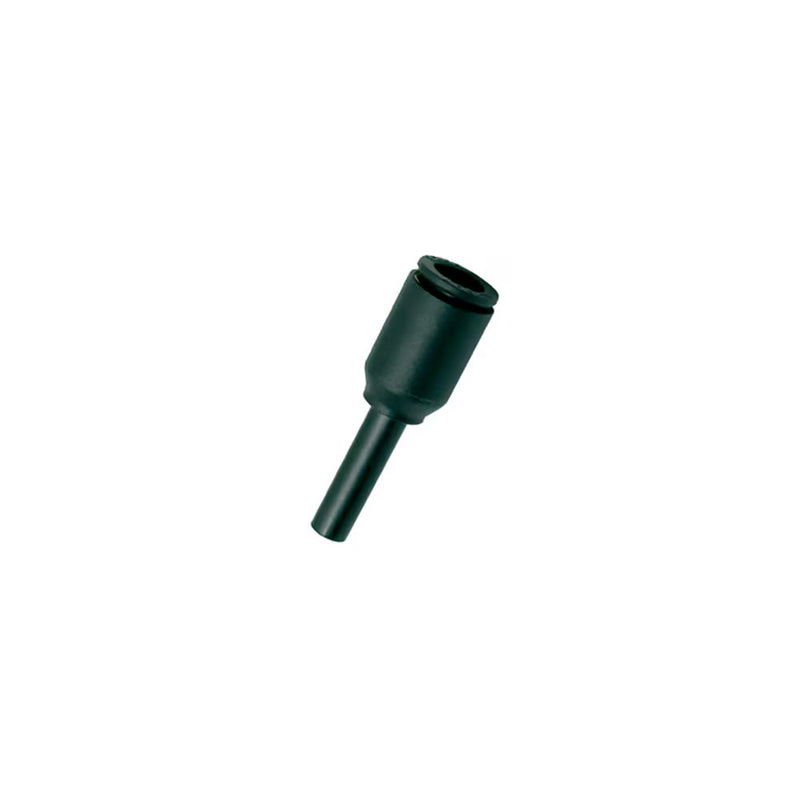

3168 08 56 by Parker | Legris Plug-In Fittings | 8 mm Push-to-Connect x 1/4" Tube Stem Increaser | 40 mm Length | Straight | Polymer | Pack of 10

Save $12.31

$82.04

$82.04 - $82.04

$82.04

$69.73

$69.73 - $69.73

$69.73

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3168 Plug-In Increaser

Package Quantity: 10 Units

Specifications for Variant SKU: 3168 08 56 Parker \| 10 \|
Brand:	LF 3000®
Series:	3168 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD1	ØD2	G	L	L1	Kg
3168 04 53	4 mm	1/8"	.43"	1.61"	1.16"	.0277 kg
3168 06 04	6 mm	4 mm	10.5 mm	35 mm	23 mm	.002 kg
3168 08 06	8 mm	6 mm	13.5 mm	45 mm	31.5 mm	.003 kg
3168 08 56	8 mm	1/4"	16 mm	40 mm	25.5 mm	.009 kg
3168 10 08	10 mm	8 mm	16 mm	42.5 mm	21 mm	.004 kg
3168 12 10	12 mm	10 mm	19 mm	49 mm	24.5 mm	.006 kg
