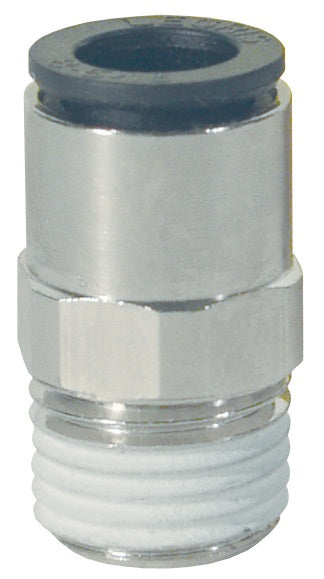

31750613 by Dixon Valve | Legris Metric Push-In Fitting | Male Connector | 6mm Tube OD x 1/4" Male BSPT | Nickel-Plated Brass

31750613 by Dixon Valve | Legris Metric Push-In Fitting | Male Connector | 6mm Tube OD x 1/4" Male BSPT | Nickel-Plated Brass

Save $4.38 Save $4.38
$10.95
$10.95 - $10.95
$10.95
$6.57
$6.57 - $6.57
$6.57

Dixon Valve & Coupling
Legris Metric Push-In Fitting | Male Connector | Male BSPT x Tube End

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.
Specifications for Variant SKU: 31750613 Dixon
Shape (Orientation): Straight
Ends Configuration: 6mm Push-to-Connect, 1/4in Male BSPT
Material(s): Nickel-Plated Brass, Polypropylene
Seal Material(s): Buna-N/Nitrile Rubber
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane, and polyethylene tube.
  • Vacuum rating: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Internal hex allows ease of assembly in tight places.
  • Pre-applied thread sealant.
Construction:
  • Polypropylene release button.
  • Nickel-plated brass threads.
  • Silicone free.
Specifications:
  • Pressure rating: 290 PSI at ambient temperature
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Part Number Tube O.D. Male BSPT
31750410 4mm 1/8"
31750413 4mm 1/4"
31750610 6mm 1/8"
31750613 6mm 1/4"
31750810 8mm 1/8"
31750813 8mm 1/4"
31750817 8mm 3/8"
31751013 10mm 1/4"
31751017 10mm 3/8"
