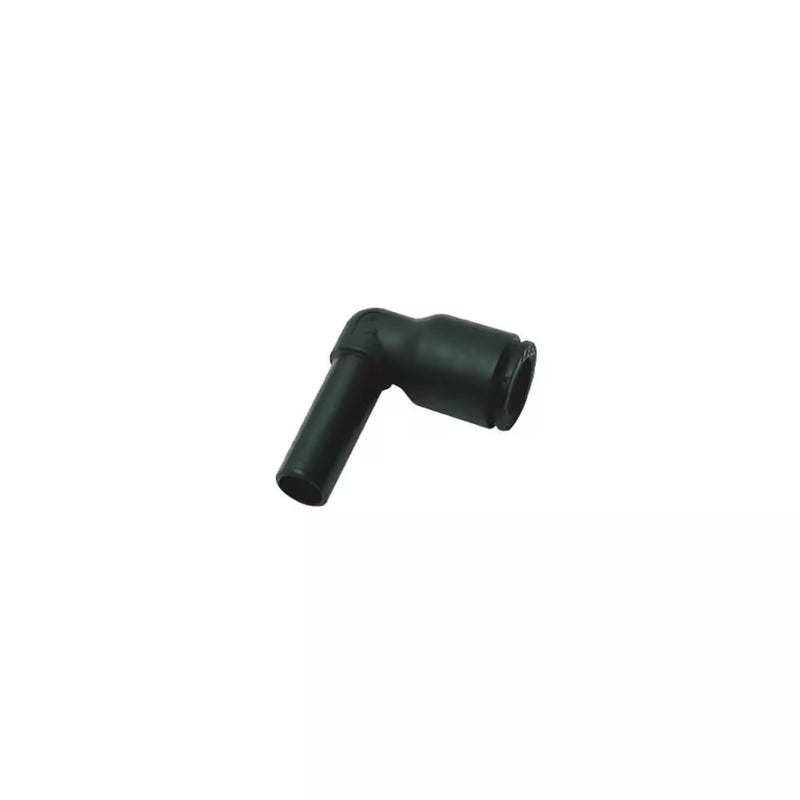

3182 53 00 by Parker | Legris Plug-In Fittings | 1/8" Push-to-Connect x 1/8" Tube Stem | .92" Length | 45° Elbow | Polymer

3182 53 00 by Parker | Legris Plug-In Fittings | 1/8" Push-to-Connect x 1/8" Tube Stem | .92" Length | 45° Elbow | Polymer

Save $2.38 Save $2.38
$26.14
$26.14 - $26.14
$26.14
$23.76
$23.76 - $23.76
$23.76

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3182 Equal Plug-In Elbow

Package Quantity: 10 Units

Specifications for Variant SKU: 3182 53 00 Parker | 10 |
Brand: LF 3000®
Series: 3182 Series
Shape (Orientation): 90° Elbow
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 G H H1 H2 L Kg or Oz
3182 53 00 1/8" 1/8" .33" .92" .31" .64" .57 .08 Oz
3182 04 56 5/32" 1/4" .43" 1.08" .30" .71" .71 .20 Oz
3182 56 00 1/4" 1/4" 11 mm 27.5 mm 7.5 mm 18 mm 18.5 mm .002 Kg
3182 56 60 1/4" 3/8" .63" 1.52" .35" .96" .98 .14 Oz
3182 60 00 3/8" 3/8" 16 mm 38.5 mm 9 mm 24 mm 26 mm .010 Kg
3182 56 60 1/2" 1/2" .87" 2.00" .51" 1.12" 1.38 .32 Oz

5/32”(4 mm) and 5/16”(8 mm) also available
