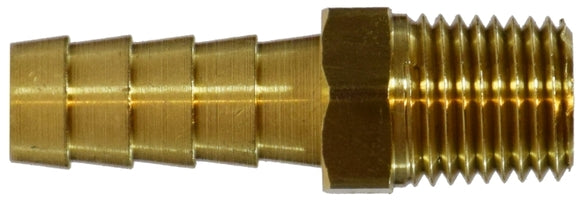

32009 (32-009) Midland Male Rigid Adapter - 5/16" Hose ID x 1/4" Male NPTF - Brass (Not Lead Free)

32009 by Midland | 5/16" Hose ID x 1/4" Male NPTF | Rigid Adapter | Brass (Not Lead Free)

Save $0.14 Save $0.14
$1.23
$1.23 - $1.23
$1.23
$1.09
$1.09 - $1.09
$1.09

Midland Industries
Brass Fitting - Hose Barb - Rigid Male Adapter

Not Lead Free

Inventory @ Manufacturers Warehouse: 8439 Units
Specifications for Variant SKU: 32009 Midland
Shape (Orientation): Straight
Ends Configuration: 5/16in Hose Barb, 1/4in Male NPTF
Material(s): Brass
Temperature Range: -40°F to +160°F at 150 PSI maximum. Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: Not Lead Free
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Crossover Series:
29 129 4244 PGH 101 102 201A 125HBL 105B-1 KF-PS MPB
Part Number Hose I.D. x Male NPTF A B Hex
32950
(32-950)		 1/16" x 10/32" 0.90" 0.45" 0.38"
32951
(32-951)		 1/16" x 1/16" 0.91" 0.48" 0.38"
32912
(32-912)		 1/8" x 10/32" 0.92" 0.48" 0.38"
32300
(32-300)		 1/8" x 1/16" 0.93" 0.48" 0.38"
32001
(32-001)		 1/8" x 1/8" 1.19" 0.69" 0.43"
32027
(32-027)		 1/8" x 1/4" 1.16" 0.46" 0.56"
32002
(32-002)		 3/16" x 1/8" 1.19" 0.75" 0.43"
32003
(32-003)		 3/16" x 1/4" 1.37" 0.69" 0.56"
32953
(32-953)		 3/16" x 3/8" 1.44" 0.69" 0.68"
32301
(32-301)		 1/4" x 1/16" 1.44" 0.88" 0.43"
32004
(32-004)		 1/4" x 1/8" 1.47" 0.97" 0.43"
32005
(32-005)		 1/4" x 1/4" 1.72" 0.97" 0.56"
32006
(32-006)		 1/4" x 3/8" 1.72" 0.97" 0.68"
32007
(32-007)		 1/4" x 1/2" 1.72" 0.81" 0.87"
32954
(32-954)		 1/4" x 3/4" 1.86" 0.96" 1.06"
32008
(32-008)		 5/16" x 1/8" 1.47" 0.97" 0.43"
32009
(32-009)		 5/16" x 1/4" 1.72" 0.97" 0.56"
32010
(32-010)		 5/16" x 3/8" 1.76" 0.97" 0.68"
32390
(32-390)		 5/16" x 1/2" 1.88" 0.95" 0.87"
32011
(32-011)		 3/8" x 1/8" 1.53" 0.97" 0.56"
32012
(32-012)		 3/8" x 1/4" 1.75" 0.97" 0.56"
32013
(32-013)		 3/8" x 3/8" 1.72" 0.96" 0.68"
32014
(32-014)		 3/8" x 1/2" 1.87" 0.97" 0.87"
32026
(32-026)		 3/8" x 3/4" 1.97" 0.97" 1.06"
32956
(32-956)		 7/16" x 1/4" 1.75" 0.97" 0.56"
32957
(32-957)		 7/16" x 3/8" 1.73" 0.97" 0.70"
32958
(32-958)		 7/16" x 1/2" 1.87" 0.97" 0.88"
32302
(32-302)		 1/2" x 1/8" 1.57" 0.95" 0.56"
32015
(32-015)		 1/2" x 1/4" 1.72" 0.97" 0.56"
32016
(32-016)		 1/2" x 3/8" 1.76" 0.97" 0.68"
32017
(32-017)		 1/2" x 1/2" 1.87" 0.96" 0.87"
32018
(32-018)		 1/2" x 3/4" 1.94" 0.97" 1.06"
32303
(32-303)		 1/2" x 1" 2.31" 0.99" 1.37"
32304
(32-304)		 5/8" x 1/4" 1.67" 0.92" 0.68"
32019
(32-019)		 5/8" x 3/8" 1.76" 0.97" 0.68"
32020
(32-020)		 5/8" x 1/2" 1.87" 0.96" 0.87"
32021
(32-021)		 5/8" x 3/4" 1.87" 0.96" 1.06"
32305
(32-305)		 5/8" x 1" 2.31" 0.96" 1.37"
32915
(32-915)		 3/4" x 1/4" 1.64" 0.87" 0.81"
32306
(32-306)		 3/4" x 3/8" 1.65" 0.87" 0.81"
32022
(32-022)		 3/4" x 1/2" 1.87" 0.96" 0.87"
32023
(32-023)		 3/4" x 3/4" 1.87" 0.96" 1.06"
32316
(32-316)		 3/4" x 1" 2.55" 1.15" 1.37"
32307
(32-307)		 1" x 1/2" 1.80" 0.87" 1.06"
32024
(32-024)		 1" x 3/4" 2.19" 1.19" 1.06"
32025
(32-025)		 1" x 1" 2.48" 1.19" 1.37"
32029
(32-029)		 1-1/4" x 3/4" 2.37" 1.19" 1.37"
32028
(32-028)		 1-1/4" x 1" 2.55" 1.19" 1.37"
