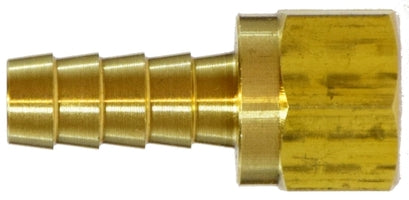

32100 (32-100) Midland Female 45° Flare Swivel Hose Barb - 1/2" Hose ID x 1/2" Female 45° Flare - Brass

32100 by Midland | Flare Swivel Hose Barb | 1/2" Hose ID x 1/2" Female 45° Flare | 45° Elbow | Brass

Save $2.08 Save $2.08
$5.20
$5.20 - $5.20
$5.20
$3.12
$3.12 - $3.12
$3.12

Midland Industries
Brass Fitting - Hose Barb - Female 45° Flare Swivel

Inventory @ Manufacturers Warehouse: 3571 Units
Specifications for Variant SKU: 32100 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 1/2in Female SAE 45 Flare
Material(s): Brass

SPECIFICATIONS

Applications: N/A Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: -40°F to +160°F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: N/A
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Crossover Series:
29SAE 129SAE 209ASF 146HBLFSV KF-NS 128 FSS 146 144
Part Number Hose ID x Female 45° Flare UNF Thread A B Hex Approx. Weight
(Lbs.)
32326
(32-326) 		3/16" x 3/16" 3/8-24" 1.19" 0.75" 0.43" 0.04"
30295**
(30-295) 		3/16" x 3/8" 5/8-18" 1.82" 0.90" 0.75" 0.04"
32101
(32-101) 		1/4" x 1/4" 7/16-20" 1.57" 0.97" 0.56" 0.04"
32103
(32-103) 		1/4" x 3/8" 5/8-18" 1.64" 0.97" 0.75" 0.08"
32104
(32-104) 		5/16" x 5/16" 1/2-20" 1.61" 0.97" 0.62" 0.05"
32327
(32-327) 		5/16" x 3/8" 5/8-18" 1.67" 0.97" 0.75" 0.08"
32105
(32-105) 		3/8" x 3/8" 5/8-18" 1.64" 0.97" 0.75" 0.08"
32105C**
(32-105C) 		3/8" x 3/8" 5/8-18" 1.71" 0.97" 0.75" 0.07"
32106
(32-106) 		3/8" x 1/2" 3/4-16" 1.81" 0.97" 0.87" 0.10"
32100
(32-100) 		1/2" x 1/2" 3/4-16" 1.68" 0.97" 0.87" 0.12"
32328
(32-328) 		3/4" x 3/4" 1-1/16-14" 2.00" 0.97" 1.25" 0.20"
** Swivel crimp style (crimped on the outside of fitting)
