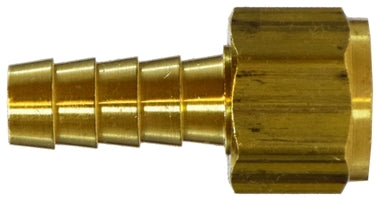

32130 (32-130) by Midland | Swivel Female Adapter with Gasket | 5/16" Hose ID x 1/4" Female NPSM | Straight | Brass

32130 (32-130) by Midland | Swivel Female Adapter with Gasket | 5/16" Hose ID x 1/4" Female NPSM | Straight | Brass

Save $1.59 Save $1.59
$10.22
$10.22 - $10.22
$10.22
$8.63
$8.63 - $8.63
$8.63

Midland Industries
Brass Fitting - Hose Barb - Swivel Female Adapter with Gasket

National Pipe Straight Gasket Seal Swivel.

Not recommend for water due to fiber gasket - for air service only.

Inventory @ Manufacturers Warehouse: 7 Units
Specifications for Variant SKU: 32130 Midland
Shape (Orientation): Straight
Ends Configuration: 5/16in Hose Barb, 1/4in Female NPSM
Material(s): Brass
Applications: N/A Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: -40°F to +160°F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: N/A
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Crossover Series:
29UFS 129UFS 130 126 29FSG KF-RN
Part Number Hose I.D. x Female NPSM A B Hex Approx. Weight
(Lbs.)
32131
(32-131)		 1/8" x 1/8" 0.90" 0.46" 0.50" 0.02
32132
(32-132)		 3/16" x 1/8" 1.19" 0.75" 0.50" 0.03
32133
(32-133)		 3/16" x 1/4" 1.28" 0.75" 0.62" 0.04
32120
(32-120)		 1/4" x 1/8" 1.41" 0.97" 0.50" 0.02
32121
(32-121)		 1/4" x 1/4" 1.50" 0.97" 0.62" 0.02
32129
(32-129)		 1/4" x 3/8" 1.63" 0.97" 0.75" 0.04
32130
(32-130)		 5/16" x 1/4" 1.50" 0.97" 0.62" 0.04
32122
(32-122)		 3/8" x 1/4" 1.54" 1.00" 0.62" 0.06
32123
(32-123)		 3/8" x 3/8" 1.60" 0.97" 0.75" 0.06
32354
(32-354)		 3/8" x 1/2" 1.66" 0.97" 0.93" 0.10
32124
(32-124)		 1/2" x 3/8" 1.60" 0.97" 0.75" 0.08
32125
(32-125)		 1/2" x 1/2" 1.66" 0.97" 0.93" 0.12
32117
(32-117)		 1/2" x 3/4" 1.82" 1.19" 1.18" 0.16
32118
(32-118)		 5/8" x 3/4" 1.82" 1.19" 1.18" 0.18
32119
(32-119)		 3/4" x 3/4" 1.82" 1.19" 1.18" 0.14
