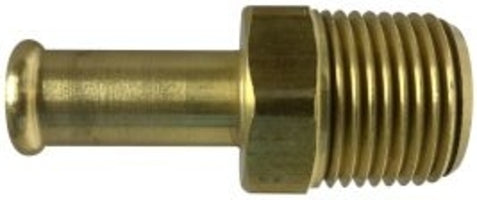

32185 (32-185) Midland Fuel Hose Barb - Bubble Barb Male Adapter - 1" Hose ID x 3/4" Male Pipe - Brass

32185 by Midland | Fuel Hose Barb | Bubble Barb | 1" Hose ID x 3/4" Male Pipe | Adapter | Brass

Save $7.21

$18.03

$18.03 - $18.03

$18.03

$10.82

$10.82 - $10.82

$10.82

Midland Industries
Brass Fitting - Fuel Hose Barb - Bubble Barb Male Adapter

Specifications for Variant SKU: 32185 Midland
Shape (Orientation):	Straight
Ends Configuration:	1in Hose Barb, 3/4in Male NPT
Material(s):	Brass

SPECIFICATIONS

Applications:	Low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines.	Used With:	Use with fuel hose SAE 30R7 & SAE 30R9.
SAE Rating:	N/A	Conformance:	N/A
Vibration:	N/A	Temperature Range:	N/A
Tolerance:	N/A	Lead Free:	N/A
Advantages:	Easy to assemble, just push the fitting into the hose & clamp. Good selection of configurations at reasonable cost.

Part Number	Hose ID	Male NPT Thread
32176 (32-176)	3/8"	3/8"
32177 (32-177)	1/2"	1/4"
32178 (32-178)	1/2"	3/8"
32179 (32-179)	1/2"	1/2"
32182 (32-182)	5/8"	3/8"
32183 (32-183)	5/8"	1/2"
32184 (32-184)	3/4"	1/2"
32180 (32-180)	3/4"	3/4"
32185 (32-185)	1"	3/4"
32181 (32-181)	1"	1"
