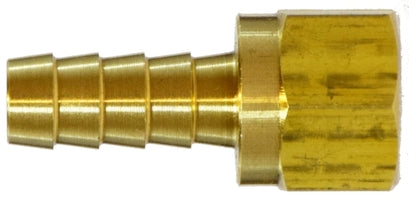

32327 (32-327) Midland Female 45° Flare Swivel Hose Barb - 5/16" Hose ID x 3/8" Female 45° Flare - Brass

32327 by Midland | Flare Swivel Hose Barb | 5/16" Hose ID x 3/8" Female 45° Flare | 45° Elbow | Brass

Save $0.10 Save $0.10
$2.58
$2.58 - $2.58
$2.58
$2.48
$2.48 - $2.48
$2.48

Midland Industries
Brass Fitting - Hose Barb - Female 45° Flare Swivel

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 1667 Units
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 32327 Midland
Shape (Orientation): Straight
Ends Configuration: 5/16in Hose Barb, 3/8in Female SAE 45 Flare
Material(s): Brass

SPECIFICATIONS

Applications: N/A Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: -40°F to +160°F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: N/A
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Crossover Series:
29SAE 129SAE 209ASF 146HBLFSV KF-NS 128 FSS 146 144
Part Number Hose ID x Female 45° Flare UNF Thread A B Hex Approx. Weight
(Lbs.)
32326
(32-326) 		3/16" x 3/16" 3/8-24" 1.19" 0.75" 0.43" 0.04"
30295**
(30-295) 		3/16" x 3/8" 5/8-18" 1.82" 0.90" 0.75" 0.04"
32101
(32-101) 		1/4" x 1/4" 7/16-20" 1.57" 0.97" 0.56" 0.04"
32103
(32-103) 		1/4" x 3/8" 5/8-18" 1.64" 0.97" 0.75" 0.08"
32104
(32-104) 		5/16" x 5/16" 1/2-20" 1.61" 0.97" 0.62" 0.05"
32327
(32-327) 		5/16" x 3/8" 5/8-18" 1.67" 0.97" 0.75" 0.08"
32105
(32-105) 		3/8" x 3/8" 5/8-18" 1.64" 0.97" 0.75" 0.08"
32105C**
(32-105C) 		3/8" x 3/8" 5/8-18" 1.71" 0.97" 0.75" 0.07"
32106
(32-106) 		3/8" x 1/2" 3/4-16" 1.81" 0.97" 0.87" 0.10"
32100
(32-100) 		1/2" x 1/2" 3/4-16" 1.68" 0.97" 0.87" 0.12"
32328
(32-328) 		3/4" x 3/4" 1-1/16-14" 2.00" 0.97" 1.25" 0.20"
** Swivel crimp style (crimped on the outside of fitting)
