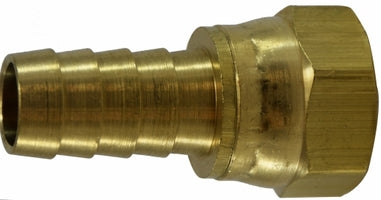

32337C (32-337C) Midland Dual 45°/ 37° Flare Swivel Hose Barb (Crimp Style) - 1/4" Hose ID x 1/4" Female Flare Swivel - Brass

32337C by Midland | Dual 45°/ 37° Flare Swivel Hose Barb (Crimp Style) | 1/4" Hose ID x 1/4" Female Flare Swivel | Brass

Save $1.35 Save $1.35
$3.38
$3.38 - $3.38
$3.38
$2.03
$2.03 - $2.03
$2.03

Midland Industries
Brass Fitting - Hose Barb - Dual 45°/ 37° Flare Swivel

Inventory @ Manufacturers Warehouse: 178 Units
Specifications for Variant SKU: 32337C Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Female JIC
Material(s): Brass

SPECIFICATIONS

Applications: N/A Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: -40°F to +160°F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: N/A
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Crossover Series:
KDS
Part Number Hose ID x Dual Seat Thread A B Hex Approx. Weight
(Lbs.)
32107
(32-107) 		3/16" x 1/4" 7/16-20" 1.34" 0.75" 0.56" 0.04"
32107C**
(32-107C) 		3/16" x 1/4" 7/16-20" 1.42" 0.78" 0.56" 0.04"
32337
(32-337) 		1/4" x 1/4" 7/16-20" 1.56" 0.97" 0.56" 0.04"
32337C**
(32-337C) 		1/4" x 1/4" 7/16-20" 1.60" 0.97" 0.56" 0.04"
32102
(32-102) 		1/4" x 5/16" 1/2-20" 1.61" 0.97" 0.62" 0.06"
32339
(32-339) 		5/16" x 5/16" 1/2-20" 1.60" 0.97" 0.62" 0.06"
32340
(32-340) 		3/8" x 1/2" 3/4-16" 1.68" 0.97" 0.87" 0.10"
32341
(32-341) 		1/2" x 1/2" 3/4-16" 1.68" 0.97" 0.87" 0.10"
32341C**
(32-341C) 		1/2" x 1/2" 3/4-16" 1.75" 0.97" 0.87" 0.09"
32342
(32-342) 		1/2" x 5/8" 7/8-14" 1.76" 0.97" 1.00" 0.12"
32394**
(32-394) 		5/8" x 5/8" 7/8-14" 1.83" 0.97" 1.00" 0.14"
** Swivel crimp style
