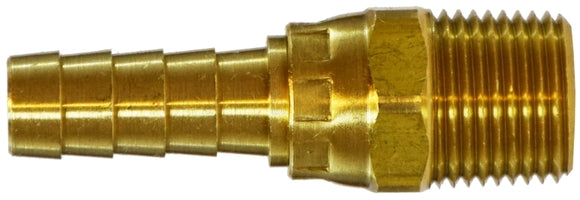

32351 (32-351) Midland Swivel Male Adapter (Crimp Style) - 3/8" Hose ID x 1/8" Male NPTF - Brass

32351 by Midland | Swivel Male (Crimp Style) | 3/8" Hose ID x 1/8" Male NPTF | Adapter | Brass

Save $0.56 Save $0.56
$5.07
$5.07 - $5.07
$5.07
$4.51
$4.51 - $4.51
$4.51

Midland Industries
Brass Fitting - Hose Barb - Swivel Male Adapter

360° Rotation
Specifications for Variant SKU: 32351 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/8in Male NPTF
Material(s): Brass

SPECIFICATIONS

Applications: N/A Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: -40°F to +160°F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: N/A
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Crossover Series:
SMS 103
Part Number Hose I.D. x Male NPTF A B Hex Approx. Weight
(Lbs.)
Crimp Style
32329
(32-329)		 3/16" x 1/8" 2.00" 0.78" 0.56" 0.06
32331
(32-331)		 3/16" x 1/4" 1.95" 0.78" 0.56" 0.06
32332
(32-332)		 1/4" x 1/8" 2.19" 0.97" 0.56" 0.06
32349
(32-349)		 1/4" x 1/4" 2.12" 0.97" 0.56" 0.06
32351
(32-351)		 3/8" x 1/8" 2.12" 0.97" 0.56" 0.07
32201
(32-201)		 3/8" x 1/4" 2.12" 0.97" 0.56" 0.07
32360
(32-360)		 3/8" x 3/8" 2.12" 0.97" 0.69" 0.08
32355
(32-355)		 1/2" x 3/8" 2.12" 0.97" 0.68" 0.10
32356
(32-356)		 1/2" x 1/2" 2.33" 0.97" 0.87" 0.14
32357
(32-357)		 3/4" x 3/4" 2.33" 0.97" 1.06" 0.20
32386
(32-386)		 1" x 1" 2.88" 1.19" 1.38" 0.40
Non-Crimp Style
32200
(32-200)		 1/4" x 1/4" 1.65" 0.89" 0.56" 0.04
32202
(32-202)		 3/8" x 3/8" 1.75" 1.00" 0.68" 0.08
