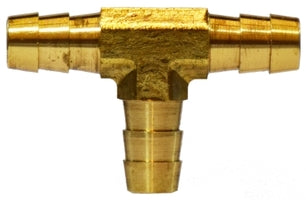

32365 (32-365) Midland Hose Barb Tee - 1/4" Hose ID x 1/4" Hose ID x 1/4" Hose ID - Brass

32365 by Midland | Hose Barb | 1/4" Hose ID x 1/4" Hose ID x 1/4" Hose ID | Tee | Brass

Save $1.51 Save $1.51
$3.77
$3.77 - $3.77
$3.77
$2.26
$2.26 - $2.26
$2.26

Midland Industries
Brass Fitting - Hose Barb - Hose Barb Tee

Inventory @ Manufacturers Warehouse: 3274 Units
Specifications for Variant SKU: 32365 Midland
Shape (Orientation): Tee
Ends Configuration: 1/4in Hose Barb, 1/4in Hose Barb, 1/4in Hose Barb, Some Ends Match
Material(s): Brass

SPECIFICATIONS

Applications: N/A Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: -40°F to +160°F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: N/A
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Crossover Series:
29T 129T
Part Number Hose Barb Size (1 & 2) x 3 A B Body Size Approx. Weight
(Lbs.)
32367
(32-367) 		1/8" 0.84" 0.83" 0.25" 0.02
32368
(32-368) 		3/16" 1.02" 1.02" 0.37" 0.03
32365
(32-365) 		1/4" 1.00" 1.00" 0.44" 0.06
32350
(32-350) 		(1/4") x 1/8" 0.94" 0.94" 0.44" 0.04
32366
(32-366) 		5/16" 1.00" 1.00" 0.44" 0.06
32126
(32-126) 		3/8" 1.01" 1.01" 0.43" 0.06
32400
(32-400) 		1/2" 1.02" 1.00" 0.43" 0.08
32352
(32-352) 		(1/2") x 3/8" 1.26" 1.26" 0.43" 0.10
32361
(32-361) 		5/8" 1.26" 1.26" 0.75" 0.16
32363
(32-363) 		3/4" 1.45" 1.45" 0.90" 0.18
32353
(32-353) 		(3/4") x 1/2" 1.41" 1.41" 0.88" 0.23
32128
(32-128) 		3/8" Hose Barbs x 1/4" Male NPTF Branch 1.00" 0.94" 0.43" 0.06
