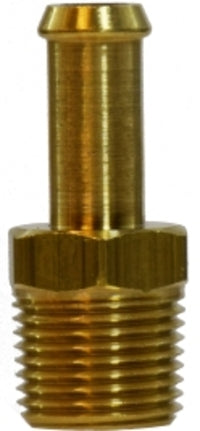

32377 (32-377) Midland Fuel Hose Barb - Male Connector - 1/4" Hose ID x 1/4" Male Pipe - Brass

32377 by Midland | Fuel Hose Barb | Connector | 1/4" Hose ID x 1/4" Male Pipe | Brass

Save $0.93 Save $0.93
$2.33
$2.33 - $2.33
$2.33
$1.40
$1.40 - $1.40
$1.40

Midland Industries
Brass Fitting - Fuel Hose Barb - Male Connector

Inventory @ Manufacturers Warehouse: 488 Units
Specifications for Variant SKU: 32377 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Male NPT
Material(s): Brass

SPECIFICATIONS

Applications: Low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines. Used With: Use with fuel hose SAE 30R7 & SAE 30R9.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: N/A
Tolerance: N/A Lead Free: N/A
Advantages: Easy to assemble, just push the fitting into the hose & clamp. Good selection of configurations at reasonable cost.
Crossover Series:
68HB 159 29SB
Part Number Hose ID Male NPT
Thread
38800
(38-800) 		3/16" 1/8" 1541
38802
(38-802) 		1/4" 1/8" 1537
32377
(32-377) 		1/4" 1/4" 1581
38806
(38-806) 		5/16" 1/8" 1551
38808
(38-808) 		5/16" 1/4" 1555
38810
(38-810) 		3/8" 1/8" 1565
32381
(32-381) 		3/8" 1/4" 1564
32382
(32-382) 		3/8" 3/8" 1566
32383
(32-383) 		1/2" 3/8" -
32384
(32-384) 		1/2" 1/2" -
32385
(32-385) 		5/8" 1/2" 1431
32387
(32-387) 		3/4" 1/2" 1430
32388
(32-388) 		3/4" 3/4" -
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
