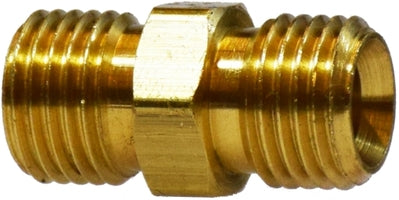

32463 (32-463) Midland Ballseat Union - 1/2" Male NPSM x 1/2" Male NPSM - Brass

32463 by Midland | Ballseat Union | 1/2" Male NPSM x 1/2" Male NPSM | Brass

Save $1.21 Save $1.21
$7.83
$7.83 - $7.83
$7.83
$6.62
$6.62 - $6.62
$6.62

Midland Industries
Brass Fitting - Ballseat Union

30° Seat
Specifications for Variant SKU: 32463 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPSM, 1/2in Male NPSM, Some Ends Match
Material(s): Brass

SPECIFICATIONS

Applications: N/A Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: -40°F to +160°F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: N/A
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Part Number Male NPSM x Male NPSM A Hex Approx. Weight
(Lbs.)
32460
(32-460) 		1/8" 0.79" 0.43" 0.02
32461
(32-461) 		1/4" 1.09" 0.56" 0.04
32462
(32-462) 		3/8" 1.19" 0.68" 0.07
32463
(32-463) 		1/2" 1.31" 0.87" 0.10
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
