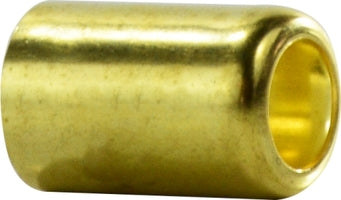

32574 (32-574) Midland Hose Ferrule - #CC - 0.775" ID - 0.531" Length - Brass

32574 by Midland | Hose Ferrule: #CC | 0.775" ID | 0.531" Length | Brass

Save $0.10 Save $0.10
$0.63
$0.63 - $0.63
$0.63
$0.53
$0.53 - $0.53
$0.53

Midland Industries
Hose Ferrules - Brass

Brass Hose Ferrules offer an alternative to hose clamps. After crimping, the ferrule will provide a permanent clamping force on both the hose and fitting.

ASTMB36 Alloy 268

Inventory @ Manufacturers Warehouse: 1390 Units
Specifications for Variant SKU: 32574 Midland
Shape (Orientation): No Orientation
Material(s): Brass
Applicable Specs & Approvals: ASTM B36 Alloy 268
Part Number Ferrule # ID Length Pierce Gauge
32500
(32-500) 		6231 0.330" 0.490" 0.250" 0.020"
32501
(32-501) 		833 0.358" 0.500" 0.265" 0.020"
32503
(32-503) 		833B 0.375" 0.718" 0.265" 0.025"
32502
(32-502) 		622 0.380" 0.500" 0.265" 0.020"
32550
(32-550) 		619 0.400" 0.470" 0.270" 0.020"
32504
(32-504) 		620 0.410" 0.500" 0.265" 0.020"
32551
(32-551) 		769R 0.450" 0.562" 0.343" 0.020"
32552
(32-552) 		4750 0.478" 0.687" 0.328" 0.025"
32553
(32-553) 		624R 0.500" 0.500" 0.343" 0.020"
32506
(32-506) 		7322A 0.500" 1.000" 0.343" 0.025"
32554
(32-554) 		7322 0.500" 1.000" 0.328" 0.025"
32555
(32-555) 		625 0.525" 0.47" 0.36" 0.020"
32517
(32-517) 		625A 0.525" 0.560" 0.360" 0.020"
32556
(32-556) 		7323 0.525" 1.000" 0.375" 0.025"
32521
(32-521) 		9974 0.525" 1.000" 0.437" 0.025"
32557
(32-557) 		7324 0.531" 1.000" 0.375" 0.025"
32558
(32-558) 		626 0.550" 0.484" 0.375" 0.020"
32507
(32-507) 		3588 0.56" 0.750" 0.375" 0.020"
32559
(32-559) 		7325 0.56" 1.000" 0.437" 0.025"
32561
(32-561) 		7326 0.593" 1.000" 0.437" 0.025"
32526
(32-526) 		II 0.625" 0.500" 0.500" 0.020"
32564
(32-564) 		7327 0.625" 1.000" 0.437" 0.025"
32565
(32-565) 		HH 0.650" 0.500" 0.500" 0.020"
32566
(32-566) 		7328 0.656" 1.000" 0.437" 0.025"
32567
(32-567) 		GG 0.675" 0.515" 0.500" 0.020"
32568
(32-568) 		7329 0.69" 1.000" 0.500" 0.025"
32570
(32-570) 		7330 0.718" 1.000" 0.500" 0.025"
32508
(32-508) 		7330A 0.718" 1.000" 0.625" 0.025"
32571
(32-571) 		EE 0.725" 0.530" 0.500" 0.020"
32572
(32-572) 		DD 0.750" 0.531" 0.500" 0.020"
32510
(32-510) 		7331B 0.750" 1.000" 0.500" 0.025"
32573
(32-573)		 7331 0.750" 1.000" 0.625" 0.025"
32574
(32-574) 		CC 0.775" 0.531" 0.500" 0.020"
32533
(32-533) 		7332B 0.781" 1.000" 0.500" 0.025"
32575
(32-575) 		7332 0.781" 1.000" 0.625" 0.025"
32576
(32-576) 		BB 0.800" 0.546" 0.562" 0.020"
32577
(32-577) 		7333 0.812" 1.000" 0.625" 0.025"
32578
(32-578) 		AA 0.825" 0.546" 0.562" 0.020"
32535
(32-535) 		- 0.850" 0.968" 0.687" 0.025"
32579
(32-579) 		7244 0.875" 0.843" 0.687" 0.025"
32539
(32-539) 		5029A 0.900" 0.875" 0.687" 0.025"
32580
(32-580) 		7113 0.925" 0.968" 0.750" 0.025"
32543
(32-543) 		5028A 0.975" 0.843" 0.687" 0.025"
32545
(32-545) 		5235A 1.000" 0.843" 0.687" 0.025"
32549
(32-549) 		7145A 1.050" 0.843" 0.687" 0.025"
32584
(32-584) 		5027 1.100" 0.843" 0.812" 0.025"
32586
(32-586) 		7104A 1.15" 0.843" 0.875" 0.025"
32588
(32-588) 		7088A 1.175" 0.875" 0.875" 0.025"
32590
(32-590) 		875L 1.200" 0.843" 0.875" 0.025"
32591
(32-591) 		7291 1.225" 0.968" 0.875" 0.025"
32592
(32-592) 		7255 1.25" 0.968" 1.000" 0.04"
32596
(32-596) 		8000 1.425" 0.875" 1.062" 0.025"
32597
(32-597) 		1500 1.50" 0.875" 1.125" 0.025"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
