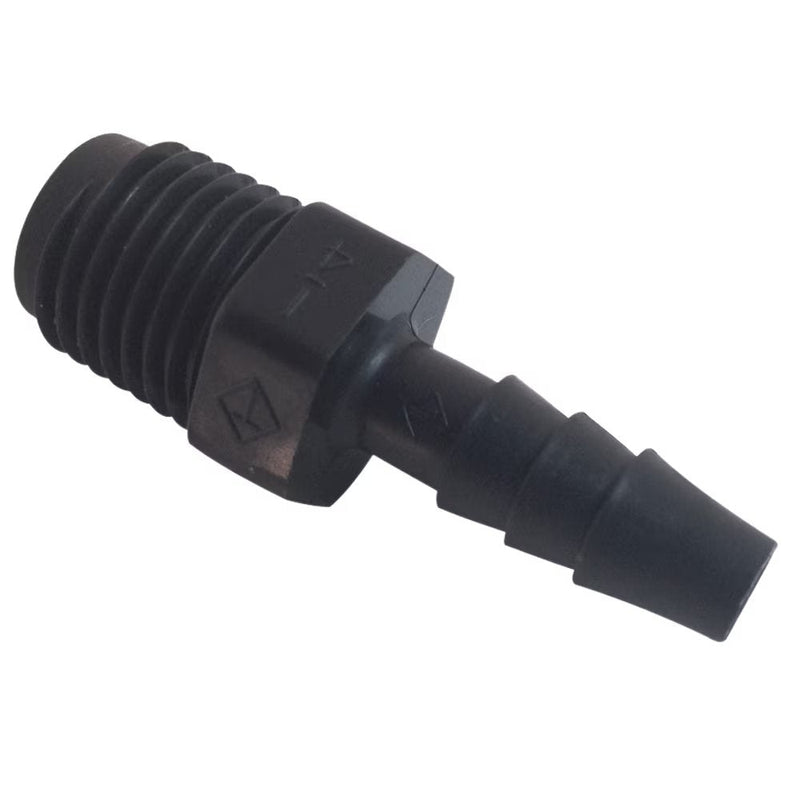

325HB-8-8PP by Parker | Threaded Fitting | Connector | 1/2" Barb x 1/2" Male NPT Pipe Thread | 7/8" Hex | 1.73" Length | Straight | Black | Polypropylene

325HB-8-8PP by Parker | Threaded Fitting | Connector | 1/2" Barb x 1/2" Male NPT Pipe Thread | 7/8" Hex | 1.73" Length | Straight | Black | Polypropylene

Save $0.06 Save $0.06
$0.58
$0.58 - $0.58
$0.58
$0.52
$0.52 - $0.52
$0.52

by Parker Hannifin
Par-Barb® Fittings:Male Connector 325HB
Specifications for Variant SKU: 325HB-8-8PP Parker
Brand: Par-Barb®
Series: 325HB Series
Shape (Orientation): Straight
Material(s): Polypropylene
Special Properties: Water and Beverage
Product Features:
  • Available in black polypropylene and white nylon
  • FDA compliant material
  • NSF/ANSI 51
  • Uniprene washer
  • Up to 1 1/2” sizes
Markets:
  • Water
  • Beverage Dispensing
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Cooling Systems
  • Vacuum
Pressure Range: Up to 125 PSI (8.6 bar)
Temperature Range: Nylon: -40° to +200° F (-40° to +93.3° C)
Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:
  • Vinyl
  • Polyurethane
  • Rubber Hose
White Nylon Part Number Black Polypropylene Part Number Tube Or Hose ID NPT Pipe Thread OD Hex (C) L Flow Diameter (D)
325HB-3-2N 325HB-3-2PP 3/16" 1/8" .25" 7/16" 1.49" .12"
325HB-3-4N 325HB-3-4PP 3/16" 1/4" .25" 9/16" 1.61" .13"
325HB-4-2N 325HB-4-2PP 1/4" 1/8" .31" 7/16" 1.50" .15"
325HB-4-4N 325HB-4-4PP 1/4" 1/4" .31" 9/16" 1.60" .16"
325HB-4-6N - 1/4" 3/8" .31" 11/16" 1.62" .16"
325HB-4-8N 325HB-4-8PP 1/4" 1/2" .31" 7/8" 1.73" .15"
325HB-4-12N - 1/4" 3/4" .31" 1-1/8" 1.74" .16"
325HB-5-2N - 5/16" 1/8" .37" 7/16" 1.50" .22"
325HB-5-4N - 5/16" 1/4" .37" 9/16" 1.62" .22"
325HB-5-6N 325HB-5-6PP 5/16" 3/8" .37" 11/16" 1.60" .21"
325HB-6-2N 325HB-6-2PP 3/8" 1/8" .43" 7/16" 1.49" .25"
325HB-6-4N 325HB-6-4PP 3/8" 1/4" .43" 9/16" 1.62" .25"
325HB-6-6N 325HB-6-6PP 3/8" 3/8" .43" 11/16" 1.61" .25"
325HB-6-8N 325HB-6-8PP 3/8" 1/2" .43" 7/8" 1.73" .25"
325HB-6-12N 325HB-6-12PP 3/8" 3/4" .43" 1-1/8" 1.72" .25"
325HB-8-4N 325HB-8-4PP 1/2" 1/4" .55" 9/16" 1.61" .35"
325HB-8-6N 325HB-8-6PP 1/2" 3/8" .55" 11/16" 1.60" .37"
325HB-8-8N 325HB-8-8PP 1/2" 1/2" .55" 7/8" 1.73" .37"
325HB-8-12N 325HB-8-12PP 1/2" 3/4" .55" 1-1/8" 1.72" .37"
325HB-10-6N 325HB-10-6PP 5/8" 3/8" .66" 11/16" 1.61" .46"
325HB-10-8N 325HB-10-8PP 5/8" 1/2" .66" 7/8" 1.73" .46"
325HB-10-12N 325HB-10-12PP 5/8" 3/4" .67" 1-1/8" 1.82" .46"
325HB-12-8N 325HB-12-8PP 3/4" 1/2" .80" 7/8" 1.86" .62"
325HB-12-12N 325HB-12-12PP 3/4" 3/4" .80" 1-1/8" 1.85" .62"
