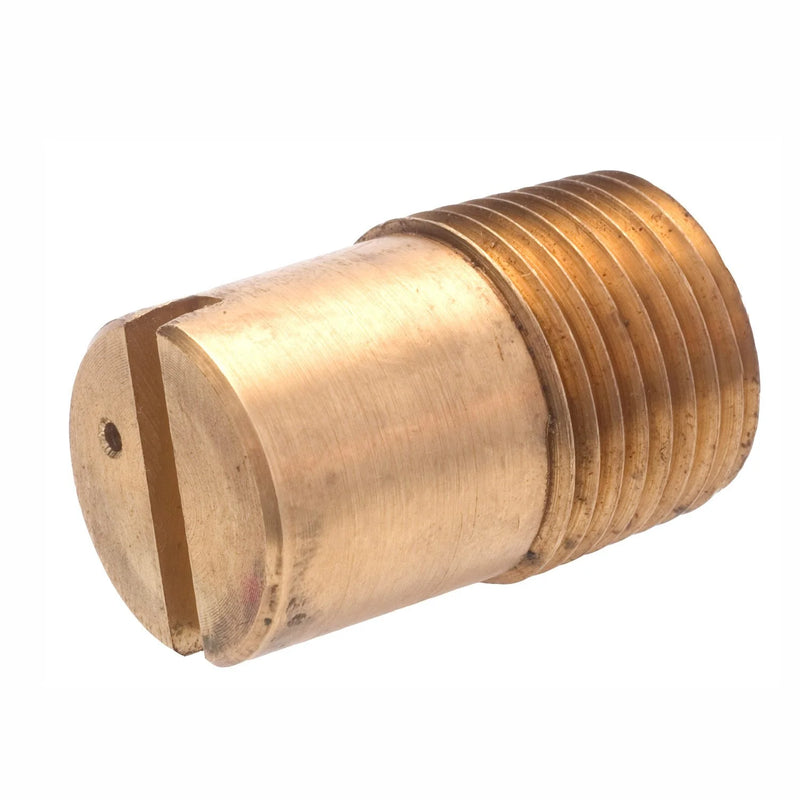

326370-3 by Alemite | Spray Nozzles | Inlet/Outlet: Threaded 1/2" Male NPTF | Brass

326370-3 by Alemite | Spray Nozzles | Inlet/Outlet: Threaded 1/2" Male NPTF | Brass

Save $61.06 Save $61.06
$213.71
$213.71 - $213.71
$213.71
$152.65
$152.65 - $152.65
$152.65

PRODUCT DESCRIPTION

Alemite Centralized Lubrication - Oil Mist - Spray Nozzles
Specifications for Variant SKU: 326370-3 Alemite
Applications:
  • Alemite Oil Mist Systems are used to service all types of machine elements that require continuous lubrication, such as rolling element bearings and chain drives. Delivering a continuous, measured stream of clean atomized oil, Alemite Oil Mist Systems have no moving parts for long, reliable life. Alemite Oil Mist Systems use less lubricant, making them a very cost effective option for continuous, automatic lubrication.
Features:
  • NA

Part Number Inlet/Outlet Number of
0.067 holes		 CFM @ 20" H2O
383588-1 1/4"NPTF(m) 1 0.31
383588-2 1/4"NPTF(m) 2 0.62
383588-3 1/4"NPTF(m) 3 0.93
383588-4 1/4"NPTF(m) 4 1.24
383588-5 1/4"NPTF(m) 5 1.55
383588-6 1/4"NPTF(m) 6 1.86
383588-7 1/4"NPTF(m) 7 2.17
384280-1 1/2"PTF(m) SAE Special Short 1 0.31
384280-2 1/2"PTF(m) SAE Special Short 2 0.62
384280-4 1/2"PTF(m) SAE Special Short 4 1.24
384280-5 1/2"PTF(m) SAE Special Short 5 1.55
384280-6 1/2"PTF(m) SAE Special Short 6 1.86
384280-8 1/2"PTF(m) SAE Special Short 8 2.48
384280-9 1/2"PTF(m) SAE Special Short 9 2.79
384280-10 1/2"PTF(m) SAE Special Short 10 3.40
326370-1 Threaded 1/2" NPTF(m) 1 0.31
326370-2 Threaded 1/2" NPTF(m) 2 0.62
326370-3 Threaded 1/2" NPTF(m) 3 0.93
326370-4 Threaded 1/2" NPTF(m) 4 1.24
326370-5 Threaded 1/2" NPTF(m) 5 1.55
326370-6 Threaded 1/2" NPTF(m) 6 1.86
326370-7 Threaded 1/2" NPTF(m) 7 2.17
326370-8 Threaded 1/2" NPTF(m) 8 2.48
326370-9 Threaded 1/2" NPTF(m) 9 2.79
326370-10 Threaded 1/2" NPTF(m) 10 3.4
383617-10 Threaded 3/4" NPTF(m) 10 3.4
383617-11 Threaded 3/4" NPTF(m) 11 3.41
383617-12 Threaded 3/4" NPTF(m) 12 3.72
383617-13 Threaded 3/4" NPTF(m) 13 4.03
383617-14 Threaded 3/4" NPTF(m) 14 4.34
