32710E-690 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 45° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel

32710E-690 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 45° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel

Name: 32710E-690 Weatherhead by Danfoss | 327 'E' Series | Female 37° JIC Swivel Tube 45° Elbow Crimp Fitting | -10 Female 37° JIC Swivel x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 32710E-690 Danfoss
Price: 31.07 USD
Availability: InStock

$31.07 - $31.07

$31.07

$31.07 - $31.07

$31.07

Weatherhead by Danfoss

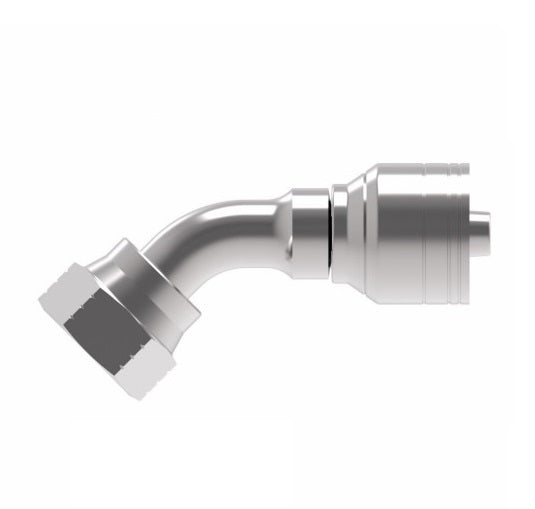

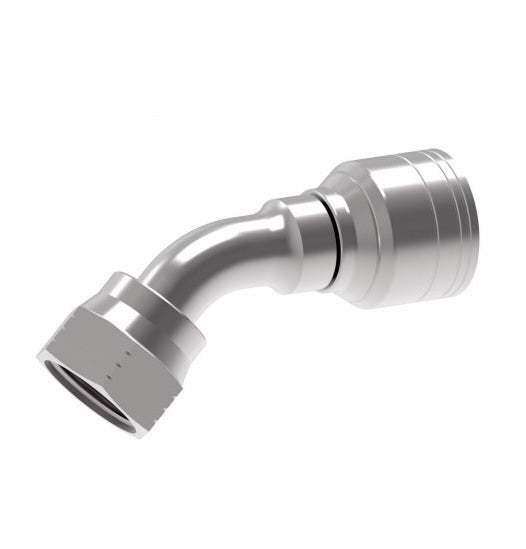

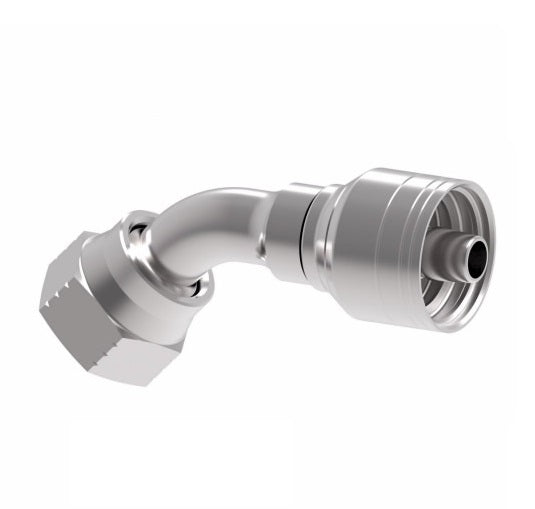

Coll-O-Crimp 327 'E' Series Crimp Fitting - Female 37° JIC Swivel - 45° Elbow

Quantity

Specifications for Variant SKU: 32710E-690 Danfoss
Brand:	Weatherhead
Series:	327 'E' Series
Shape (Orientation):	45 Degree
Ends Configuration:	5/8in Female JIC, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	GH100 Series

Applications:
General purpose low and medium pressure hydraulics.
Pressure:
Determined by working pressure for hose and hose size.
Material:
Low carbon steel Plating: Clear trivalent chromate
Compatible Hose:
GH100


Steel Part Number	Hose I.D.	Tube Size	Thread Size	A	H	Hose Cut-Off Factor	Hole Dia.	Hex 1
32710E-690	-10	-10	7/8-14	2.94"	0.59"	1.79"	0.46"	1"

Note: Drawings may differ from actual parts.
