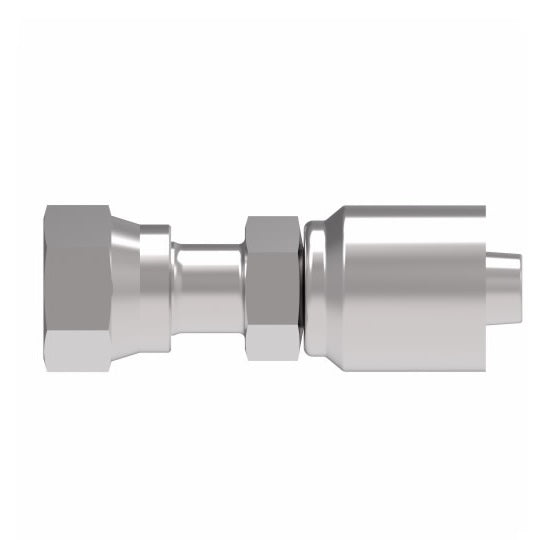

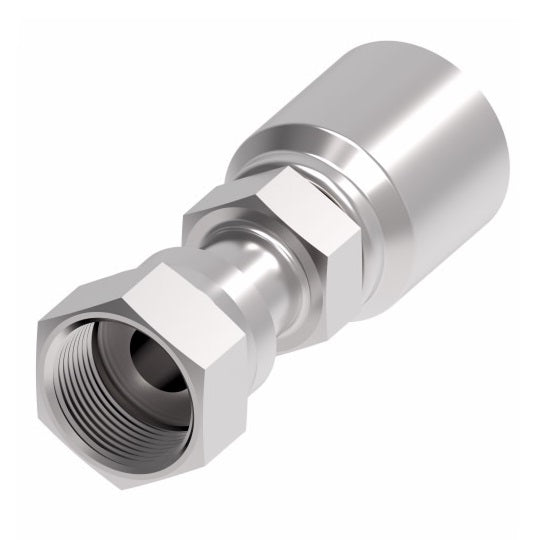

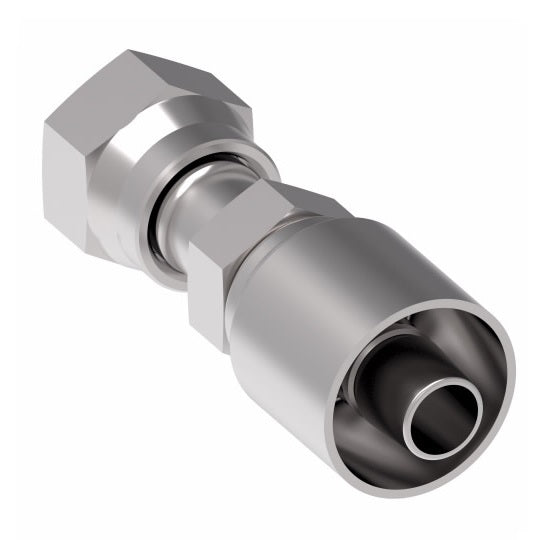

32710E-S70 Weatherhead by Danfoss | 327 'E' Series | Female ORS Crimp Fitting | -10 Female O-Ring Face Seal x -10 Hose Barb | Steel

32710E-S70 Weatherhead by Danfoss | 327 'E' Series | Female ORS Crimp Fitting | -10 Female O-Ring Face Seal x -10 Hose Barb | Steel

Name: 32710E-S70 Weatherhead by Danfoss | 327 'E' Series | Female ORS Crimp Fitting | -10 Female O-Ring Face Seal x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 32710E-S70 Danfoss
Price: 25.25 USD
Availability: InStock

$25.25 - $25.25

$25.25

$25.25 - $25.25

$25.25

Weatherhead by Danfoss
Coll-O-Crimp 327 'E' Series Crimp Fitting - Female O-Ring Face Seal - Straight

Quantity

Specifications for Variant SKU: 32710E-S70 Danfoss
Brand:	Weatherhead
Series:	327 'E' Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	GH100 Series

Applications:
General purpose low and medium pressure hydraulics.
Pressure:
Determined by working pressure for hose and hose size.
Material:
Low carbon steel Plating: Clear trivalent chromate
Compatible Hose:
GH100


Steel Part Number	Hose I.D.	Tube Size	Thread Size	A	H	Hose Cut-Off Factor	Hole Dia.	Hex 1
32706E-S66	-06	-06	11/16-16	2.23"	1.24"	0.26"	13/16"	11/16"
32708E-S68	-08	-08	13/16-16	2.67"	1.5"	0.38"	15/16"	7/8"
32710E-S70	-10	-10	1-14	2.76"	1.61"	0.48"	1-1/8"	15/16"
32712E-S72	-12	-12	1-3/16-12	2.91"	1.72"	0.61"	1-3/8"	1-1/8"

Note: Drawings may differ from actual parts.
