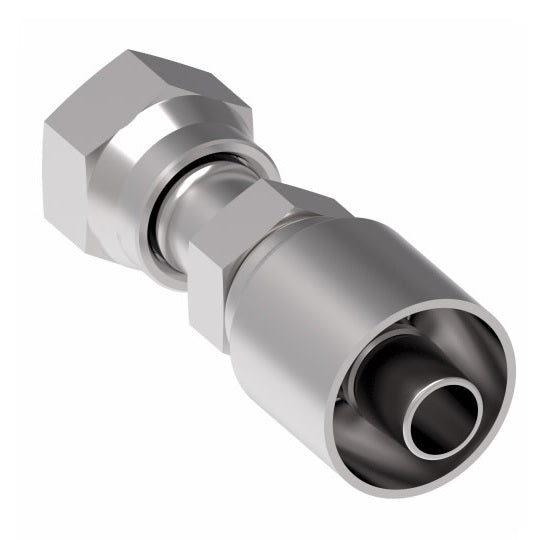

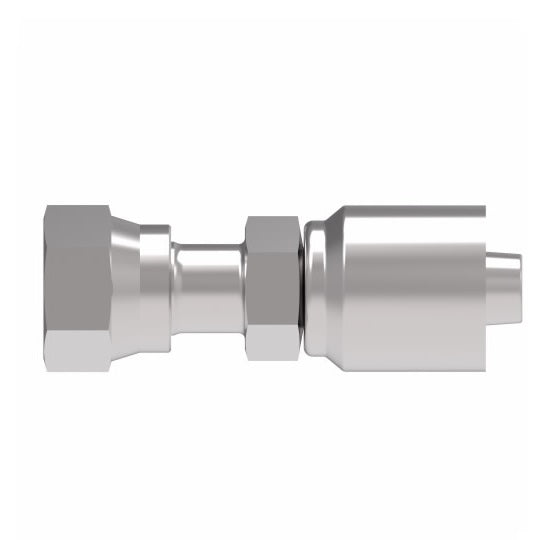

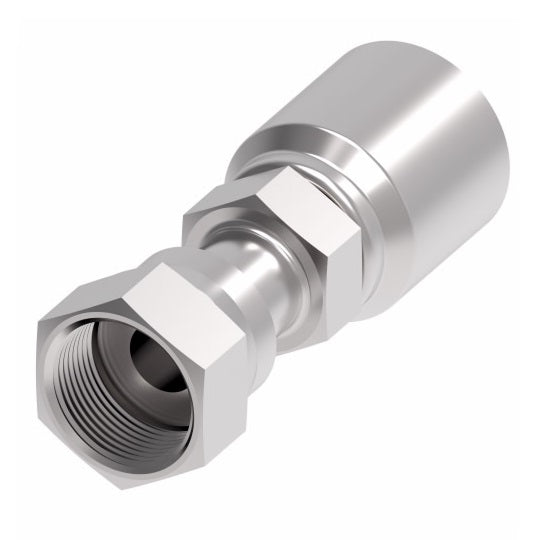

32712E-S72 Weatherhead by Danfoss | 327 'E' Series | Female ORS Crimp Fitting | -12 Female O-Ring Face Seal x -12 Hose Barb | Steel

32712E-S72 Weatherhead by Danfoss | 327 'E' Series | Female ORS Crimp Fitting | -12 Female O-Ring Face Seal x -12 Hose Barb | Steel

Name: 32712E-S72 Weatherhead by Danfoss | 327 'E' Series | Female ORS Crimp Fitting | -12 Female O-Ring Face Seal x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 32712E-S72 Danfoss
Price: 26.36 USD
Availability: InStock

$26.36 - $26.36

$26.36

$26.36 - $26.36

$26.36

Weatherhead by Danfoss
Coll-O-Crimp 327 'E' Series Crimp Fitting - Female O-Ring Face Seal - Straight

Quantity

Specifications for Variant SKU: 32712E-S72 Danfoss
Brand:	Weatherhead
Series:	327 'E' Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	GH100 Series

Applications:
General purpose low and medium pressure hydraulics.
Pressure:
Determined by working pressure for hose and hose size.
Material:
Low carbon steel Plating: Clear trivalent chromate
Compatible Hose:
GH100


Steel Part Number	Hose I.D.	Tube Size	Thread Size	A	H	Hose Cut-Off Factor	Hole Dia.	Hex 1
32706E-S66	-06	-06	11/16-16	2.23"	1.24"	0.26"	13/16"	11/16"
32708E-S68	-08	-08	13/16-16	2.67"	1.5"	0.38"	15/16"	7/8"
32710E-S70	-10	-10	1-14	2.76"	1.61"	0.48"	1-1/8"	15/16"
32712E-S72	-12	-12	1-3/16-12	2.91"	1.72"	0.61"	1-3/8"	1-1/8"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
