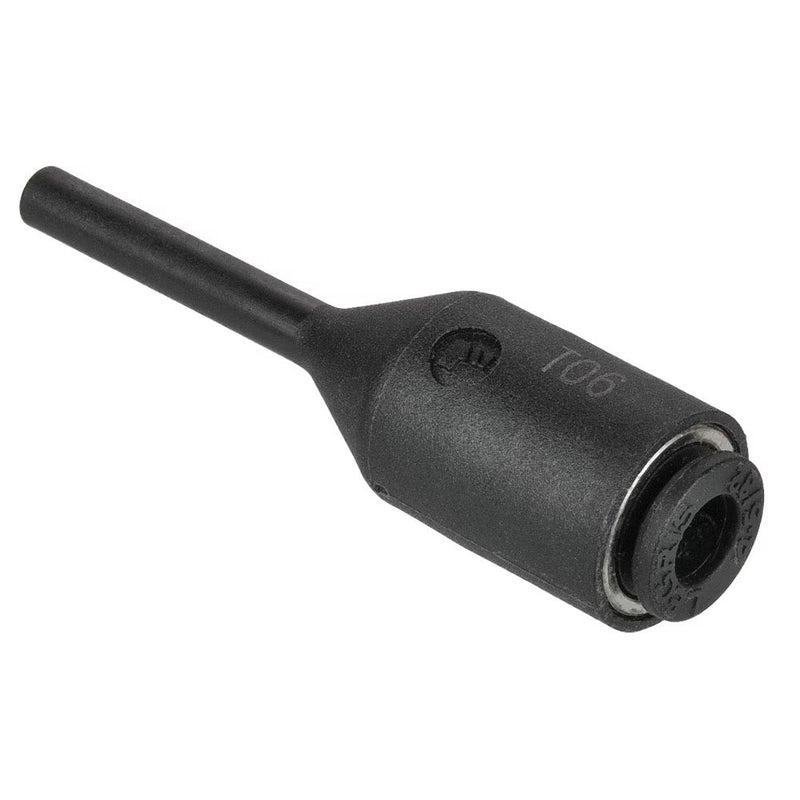

32PLPSP-12M-10M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 12mm to 10mm Tube Expander | 45.0mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

32PLPSP-12M-10M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 12mm to 10mm Tube Expander | 45.0mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

Save $29.08 Save $29.08
$72.70
$72.70 - $72.70
$72.70
$43.62
$43.62 - $43.62
$43.62

by Parker Hannifin
Push-to-Connect Fittings:32PLPSP Tube Expander

Package Quantity: 10 Units

Specifications for Variant SKU: 32PLPSP-12M-10M Parker | 10 |
Series: 32PLPSP Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size 1 Tube Size 2 L L1
32PLPSP-6M-4M 6 mm 4 mm 35.0 mm 23.0 mm
32PLPSP-8M-6M 8 mm 6 mm 45.0 mm 31.5 mm
32PLPSP-10M-8M 10 mm 8 mm 42.5 mm 21.0 mm
32PLPSP-12M-10M 12 mm 10 mm 49.0 mm 24.5 mm
